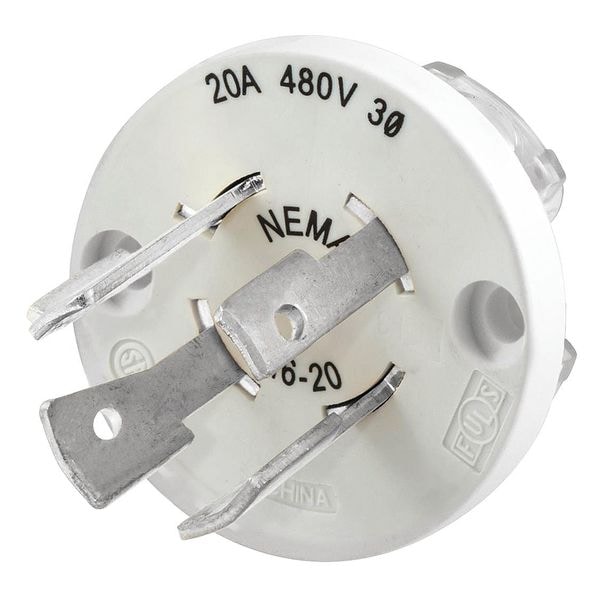

Watertight Plug, 16-20p, Repl Int
| For Use With Mfr. Model Number | HBL26W76 |
|---|---|
| Fits Brand | Hubbell |
| Item | Watertight Plug,16-20p,Repl Int |
| Contact Material | Brass |
| Overall Height | 1.9 in |
| Overall Width | 4 in |
| Voltage Rating | 480V AC |
| Housing Material | Nylon |
| NEMA Plug Configuration | L16-20P |
| Current Rating | 20 A |
| Resistance Properties | Heat Resistant |
| Color | White |
| Blade Material | Nickel-Plated Brass |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| For Use With | Plug |
| Body Material | Nylon |
| Flammability | UL 94 V2 |
| Type | Interiors |
| Voltage Rating Description | 3 Phase 480 VAC |
| Item Type | Watertight Devices Replacement Interior |
| Number Of Wires | 4-Wire |
| Amperage Rating | 20 A |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Nema Rating | L16-20P |
| Number Of Poles | 3-Pole |
| Performance | Environmental - Flammability - UL94 V-2 |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
