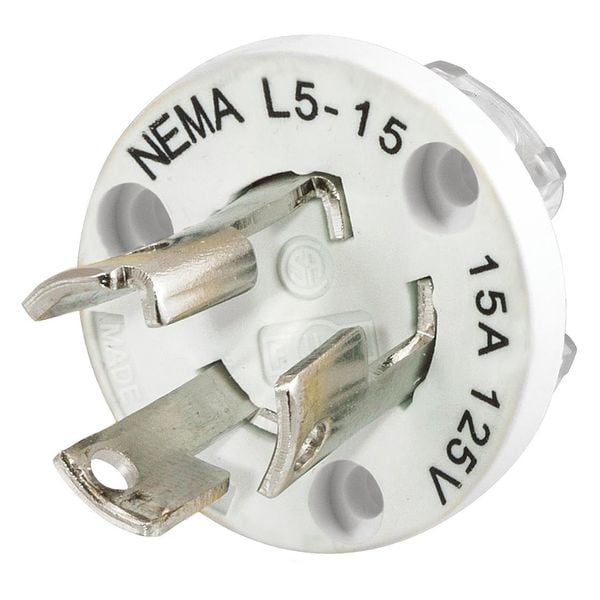

Watertight Plug, Nema L5-15p, Repl Int
| Fits Brand | Hubbell |
|---|---|
| Item | Watertight Plug,Nema L5-15p,Repl Int |
| For Use With Mfr. Model Number | HBL24W47A |
| Blade Material | Nickel-Plated Brass |
| Current Rating | 15 A |
| Contact Material | Brass |
| Overall Height | 1-1/4 in |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| NEMA Plug Configuration | L5-15P |
| Overall Width | 4 in |
| Color | White |
| Housing Material | Nylon |
| Voltage Rating | 125V AC |
| For Use With | Plug |
| Resistance Properties | Heat Resistant |
| Flammability | UL 94 V2 |
| Body Material | Nylon |
| Type | Interiors |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Performance | Environmental - Flammability - UL94 V-2 |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 125 V |
| Item Type | Watertight Devices Replacement Interior |
| Amperage Rating | 15 A |
| Number Of Poles | 2-Pole |
| Nema Rating | L5-15P |
| Package Quantity | 1 |
