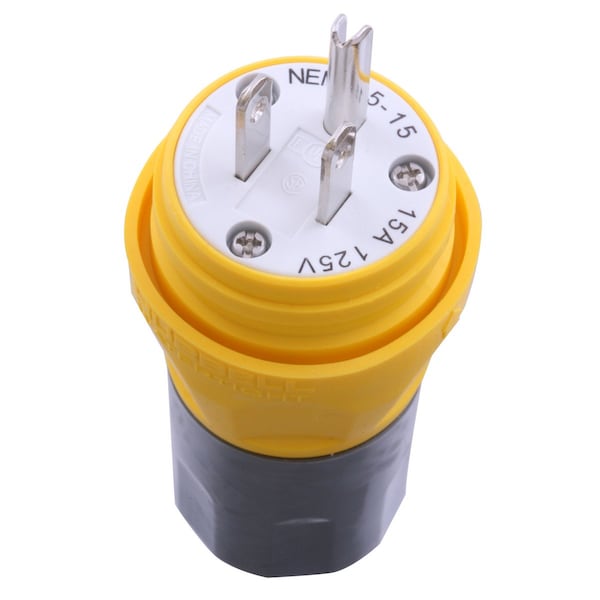

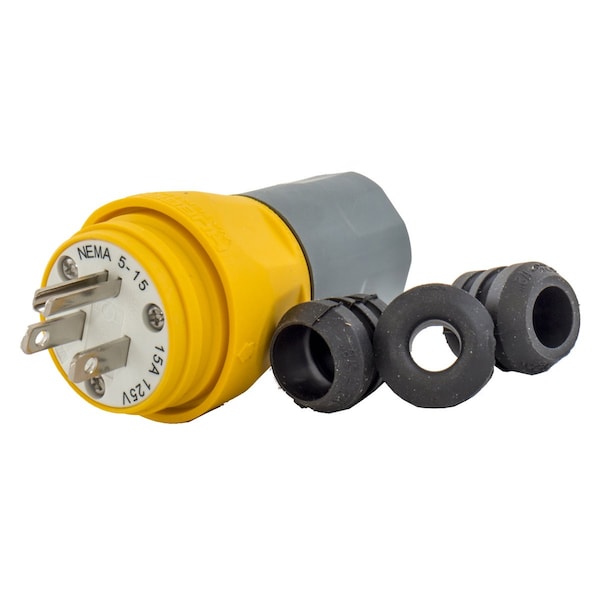

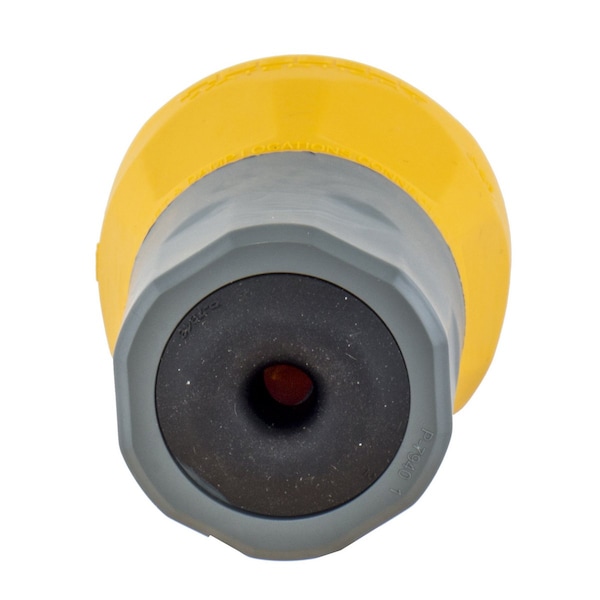

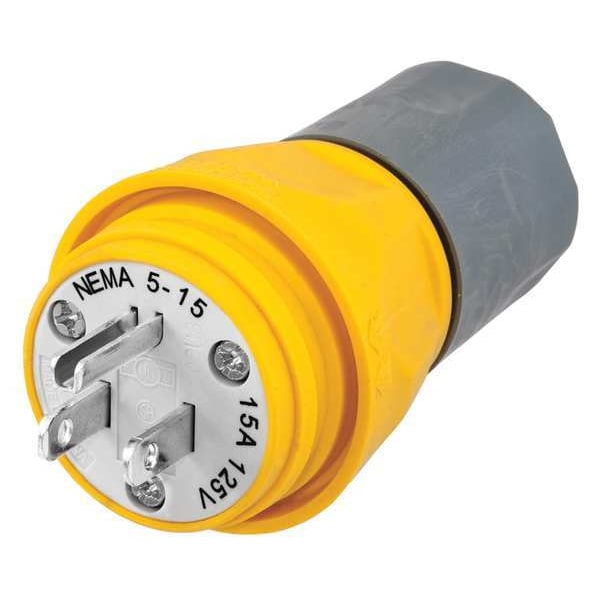

Clavija de hoja recta a prueba de agua, NEMA 5-15P, 15 A, 125V CA, 2 polos, 3 hojas, amarillo.
| Item | Watertight Straight Blade Plug |
|---|---|
| Number of Wires | 3 |
| Color | Yellow |
| Number of Poles | 2 |
| Phase | Single |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Cord Size | 0.3 to 5/8 in |
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
| Amps - Plugs and Receptacles | 15 A |
| Special Features | Corrosion resistant |
| Standards | ANSI, CSA Certified, CSA Certified C22.2 No. 42, NEMA WD-1 WD-6, UL 498, UL Listed |
| Voltage - Plugs and Receptacles | 125V AC |
| Amps | 15 |
| Grade - Plugs and Receptacles | Industrial |
| Wiring Style | Standard |
| HP | 0.5 |
| Color - Plugs and Receptacles | Yellow |
| Phase - Plugs and Receptacles | 1 |
| Corrosion Resistant | Yes |
| Voltage | 125VAC |
| IP Rating | IP69K |
| Material | Thermoplastic Elastomer, Valox |
| Grade | Industrial |
| Antimicrobial | No |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| For Maximum Cable Diameter | 5/8 in |
| Insulation Material | Elastomer |
| NEMA Plug Configuration | 5-15P |
| Number of Blades | 3 |
| Maximum Operating Temperature | 140 deg F |
| Housing Material | Thermoplastic Elastomer |
| For Minimum Cable Diameter | 3/8 in |
| Voltage Rating | 125V AC |
| Horsepower Rating | 0.5 HP |
| Current Rating | 15 A |
| Housing Color | Yellow |
| Market | Industrial, Commercial |
| Polarized | Yes |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg F |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Corrosion Resistant |
| Bushing Material | Black Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Body Material | Thermoplastic Elastomer |
| Contact Material | Nickel Plated Brass |
| Dielectric Strength | 2,500 V AC |
| Temp. Rise | 30°C |
| Retainer Material | Clear Polycarbonate |
| Operating Temp. | -40 to 60°C |
| Package Quantity | 1 |
