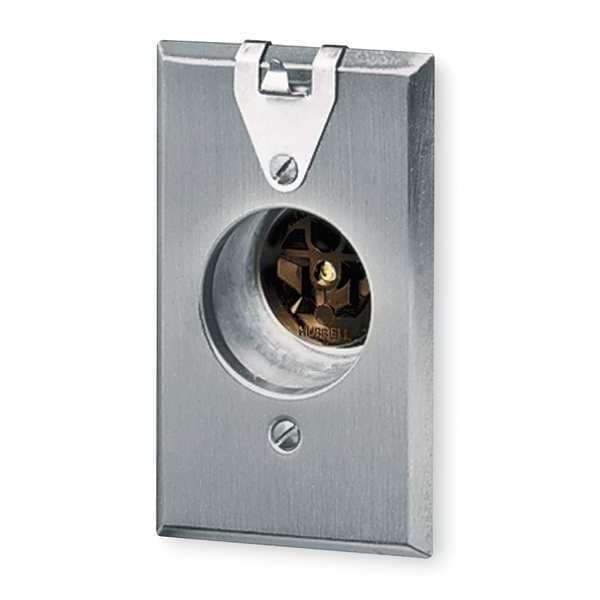

Receptáculo colgador de reloj único de 15 amperes 125VAC 5-15R BN.
| Item | Receptacle |
|---|---|
| Voltage | 125 V |
| Phase | Single Phase |
| Wiring Method | Back Wired |
| Color | Brown |
| Standards | UL/CSA |
| Height | 1.62 in |
| Width | 2-3/4 in |
| Rating | 15A, 125V |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Face Shape | Traditional |
| Receptacle Style | Single |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Horsepower | 0.5 |
| Device Color | Brown |
| Top Material | Phenolic |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Certification | UL Listed, File E2186, Listed to UL Standard 498 |
| Mounting Screw Material | Steel-Zinc Plated |
| Current Interrupting | Certified for current interrupting at full rated current |
| Specialty Type | Clock Hanger |
| NEMA No. | 5 to 15 R |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Flammability | UL 94 V2. |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Dielectric Voltage | Withstands 2,000V minimum |
| Amperage | 15 A |
| Base Material | Phenolic |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Type | Grounding, 3 Wire, 2 Pole |
| Standard | NEMA |
| Plate Style | With Stainless Plate |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Power Contacts Material | Brass |
| Product Type | Receptacle |
| Number Of Poles | 2-Pole |
| Voltage Rating Description | 125 V |
| Dielectric Strength | Withstands 2,000V minimum |
| Length | 4-1/2 in |
| Current / Amperage Rating | 15 A |
| Current Rating | 15 A |
| Material - Mounting Hardware | Screw Mounting |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 NEMA® WD-6 Compliant UL Listed to UL498 File E2186 |
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Number Of Wires | 3-Wire |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #14 AWG to #10 AWG |
| Item Type | Receptacle |
| Connectivity | Terminals |
| Dimensions | 4-1/2 in x 2-3/4 in x 1.62 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 or better Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Nema Rating | 5-15R |
| Amperage Rating | 15 A |
| Application | Commercial Specification Grade |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 1875 W |
| Overall Depth | 1-5/8 in |
| Shape | Rectangle |
| Overall Diameter | Not Applicable |
| Case Color | Brown |
| Features | Electrical - Current Interrupting - Certified for Current Interrupting at Full Rated Current, Electrical - Dielectric Voltage - withstands 2,000V Minimum, Environmental - Flammability - UL 94 V-2 or Better, Environmental - Operating Temperatures - Maximum Continuous 75 Degrees C, Minimum -40 Degrees C (W/O Impact), Mechanical - Product Identification - Ratings are a Permanent Part of the Device, Mechanical - Terminal Accommodation - #14-#10 AWG Copper Stranded or Solid Conductor Only, Mechanical - Terminal Identification - Terminals Identified in Accordance with UL 498 and CSA |
| Overall Height | 4-1/2 in |
| Overall Width | 2-3/4 in |
| Package Quantity | 1 |
