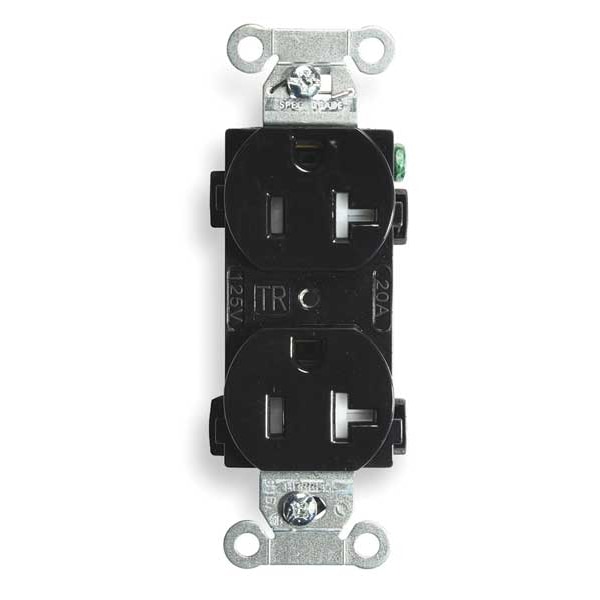

20A Duplex Receptacle 125VAC 5-20R BK
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Wiring Method | Side |
| Number of Poles | 2 |
| Material | Nylon |
| Voltage | 125VAC |
| Standards | CSA Certified, NEMA WD-6, UL Listed |
| Outlet Type | Duplex |
| Item | Receptacle |
| HP | 1 hp |
| NEMA Configuration | 5-20R |
| Amps | 20 |
| Description | Grounding, Smooth |
| Phase | 1 |
| Sub-Category | Duplex Receptacles |
| Number of Wires | 3 |
| Color | Black |
| Power Indicator | No |
| Mounting Type | Flush |
| Weather Resistant | No |
| Number of Gangs | 1 |
| Wiring Method - Plugs and Receptacles | Side |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Corrosion Resistant | No |
| Type | Duplex |
| Grade | Commercial |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Horsepower | 1 |
| Rating | 20A, 125V |
| Dielectric Voltage | Withstands 2,000V minimum |
| Top Material | Nylon |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts Material | .031" Phosphor Bronze |
| Auto Ground Clip Material | .032" Steel Wire |
| NEMA No. | 5 to 20 R |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Product Type | Flush-receptacles |
| Face Style | Smooth Face |
| Mounting Strap Material | Steel |
| Flammability | UL 94 V-2 |
| Receptacle Grade | Commercial Series Specification Grade, Tamper Resistant |
| Current Interrupting | Certified for current interrupting at full rated current |
| Amperage | 20 A |
| Receptacle Style | Duplex |
| Other Available Colors | Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond |
| Base Material | Nylon |
| Standard | NEMA |
| Device Color | Black |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Face Shape | Traditional |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Mounting Screw Material | Steel-Zinc Plated |
| Voltage Rating Description | 125 V |
| Series | Commercial Specification Grade |
| Material - Mounting Hardware | Screw Mounting |
| Style | Smooth Face |
| Item Type | Traditional Duplex |
| Application | Commercial Specification Grade |
| Display Size | Standard Sized Product |
| Dimensions | 1.32 in x 1.14 in x 3.28 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | 5-20R |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 2500 W |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Height | 3.28 in |
| Width | 1.14 in |
| Horsepower - Maximum | 1 |
| Connectivity | Side Wired |
| Wire Size | #12 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Length | 1.32 in |
| Current Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
