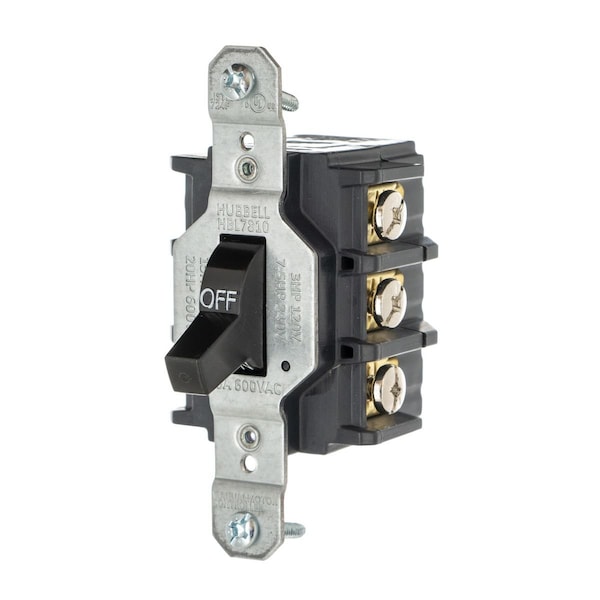

30 A, 600V AC, 3 polos
| Amps | 30 |
|---|---|
| Voltage | 600 V AC |
| Number of Poles | 3 |
| Phase | Three Phase |
| Material | Stainless Steel |
| Display Size | Standard Sized Product |
| Type | Wire, Back |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Short Toggle |
| Current / Amperage Rating | 30 A |
| Series | Short Toggle |
| Load Capacity | Inductive |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Horsepower - Maximum | 20 |
| Voltage Rating Description | 600 VAC |
| Current Rating | 30 A |
| Wattage | 18000 W |
| Connectivity | Back and Side Wired |
| Operating Cycles | 10,000 Cycles Minimum |
| Package Quantity | 1 |
