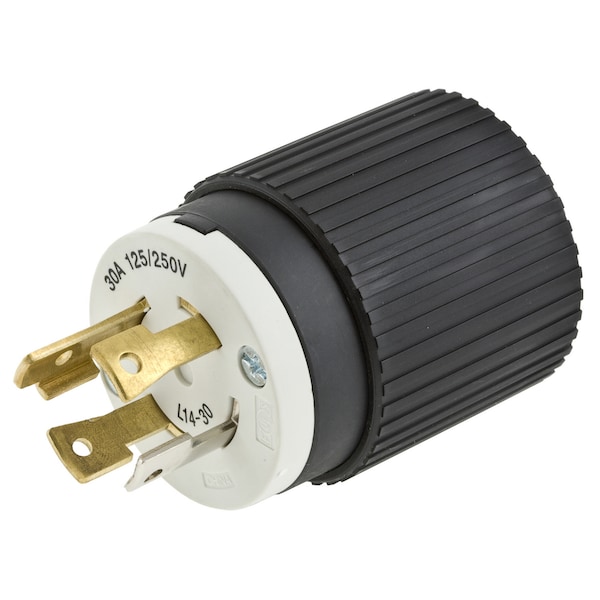

30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT
| Item | Lkg Plg 30A 125/250V |
|---|---|
| Item - Plugs and Receptacles | Plug |
| Voltage - Plugs and Receptacles | 600V AC, 250V DC; 30A, 125/250V |
| Number of Poles | 3 Pole, 4 Wire Grounding |
| Color | Black, White |
| NEMA Configuration | L14-30P |
| Standards | Terminals identified in accordance with UL 498 (Brass, White, Green),UL listed,CSA |
| Flammability | HB or better |
| Operating Temp. | Maximum Continuous 60 deg C, minimum -40 deg c. (w/o impact). |
| Body Material | Nylon |
| Temp. Rise | Maximum 30 deg C. Temp. Rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498 |
| Package Quantity | 1 |
