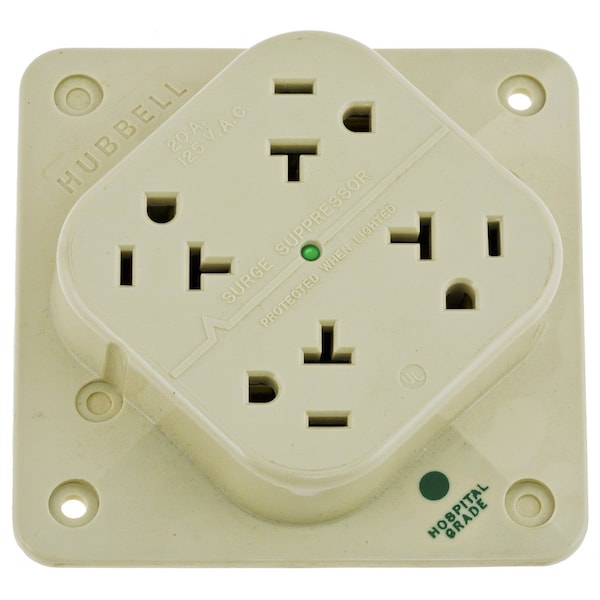

4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Ivory
| Phase | Single Phase |
|---|---|
| Color | Ivory |
| Material | Composite |
| Voltage | 125 V |
| Type | 4-Plex |
| Item | Surge Protection Receptacles |
| Response Time | 5 |
| Outlet | Straight Blade |
| Voltage Rating | 125 V |
| Display Size | Standard |
| Carton Quantity | 5 |
| Connectivity | Terminal Screws |
| Indicator Type | LED Only |
| Application | 4-Plex with LED |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Brand | Hubbell Wiring Device-Kellems |
| Current Rating | 20 A |
| Series | Hospital Grade |
| Amperage | 20 A |
| Frequency | 60 Hz |
| Mounting Hardware Material | Mounting Screws |
| Nema Rating | 5-20R |
| 4-Plex Type | TVSS |
| Poles and Wires | 2 Pole, 3 Wire |
| Product Type | 4-plex |
| Performance | Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 20V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - -40°F to 140°F (-40°C to 60°C) |
| Material - Mounting Hardware | Mounting Screws |
| Amperage Rating | 20 A |
| Indicator(s) Type | LED Only |
| Item Type | Surge Protection Receptacles |
| Voltage Rating Description | 125 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Frequency Rating | 60 Hz |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 |
| Package Quantity | 1 |
