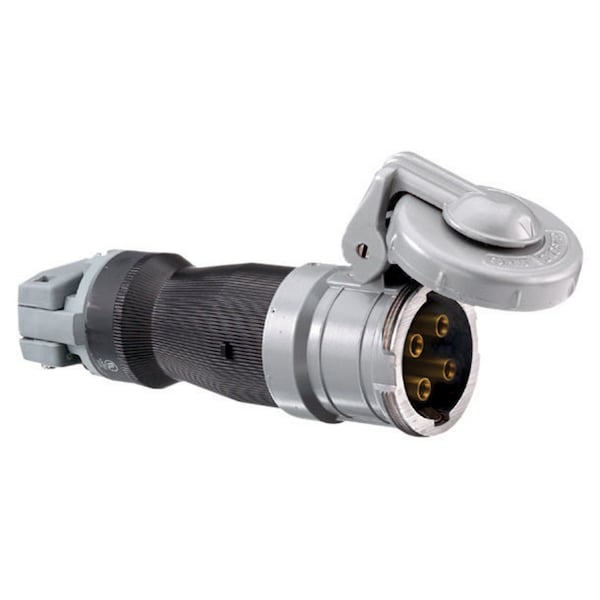

60 Amp 3P4W Hbl460Cs2Wr
| Voltage | 250V DC/600V AC |
|---|---|
| Grounding Style | Style 2 |
| Type | Connector |
| Material | Composite |
| Application | Metallic with Nylon Shroud |
| Gaskets | Neoprene |
| Moisture Resistance | Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94. |
| Springs, Arm and Wave | Stainless Steel (300 series) |
| Cord Clamps | Rynite SST35 |
| Product Type | insulgrip-devices |
| Cord clamp range | .870" To 1.450" |
| Cord Accommodation | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards. |
| Contact Carrier | Thermoset Polyester |
| Certifications | UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X. |
| Ground Bracket | Nickel Plated Spring Bronze |
| Spring Guide | Stainless Steel (300 series) |
| Amperage | 60A |
| Temperature Rise | Max 302Deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current. |
| Shroud | Epoxy Painted Aluminum |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Housing | Valox 357 |
| Cover Screw/Rivet | Aluminum |
| Grommet/Glands | Neoprene |
| Ground Standoff | Brass |
| Insulgrip Grounding Style | Style II |
| Service Style | Reversed |
| Endurance | Up to 1,000 connect and disconnect cycles at full rated current and voltage. |
| Dielectric Withstand Voltage | Withstands 3,000V AC |
| Certification | UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X. |
| Cover | Epoxy Painted Aluminum |
| Gland Cap | Rynite SST35 |
| Hinge Bushing | Aluminum |
| Terminal Identification | Terminals identified in accordance with UL1686 (1, 2, 3, Green). |
| Operating Temperatures | Maximum Continuous: 752Deg C; Minimum Continuous: -402Deg C w/o impact, -252Deg with impact. |
| Clamp Nut | Nickel Plated Brass |
| Poles and Wires | 3 Pole, 4 Wire |
| Cord Clamp Screws | Stainless Steel (300 Series) |
| Flammability | CSA, UL 94V-0 C22.2 No.0.17 |
| Max Working Voltage | 600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682). |
| Device | Connector |
| Terminal Screws | Heat treated and Zinc Plated Steel |
| Retainer | Thermoset Polyester |
| Spring Washer | Stainless Steel (300 series) |
| Terminal Accommodations | #6 To #4 AWG copper wire only |
| Ground/Phase Sleeve | Brass |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Display Size | Standard |
| Item Type | Standard |
| Amperage Rating | 60 A |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Style | Reversed Service,Style 2 Grounding |
| Conductor Range | #6 AWG to #4 AWG |
| Insulation | Insulated Body |
| Current Rating | 60 A |
| Current / Amperage Rating | 60 A |
| Number Of Conductors | 4-Wire Grounding Style 2 |
| Environmental Conditions | Watertight |
| Connectivity | Pressure Terminal Screws |
| Series | UL 1686 Class 1 Insulgrip® |
| Number Of Wires | 4-Wire |
| Material - Mounting Hardware | Cord Mounted |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Voltage Rating Description | 600V AC/250V DC |
| Number Of Poles | 3-Pole |
| Package Quantity | 1 |
