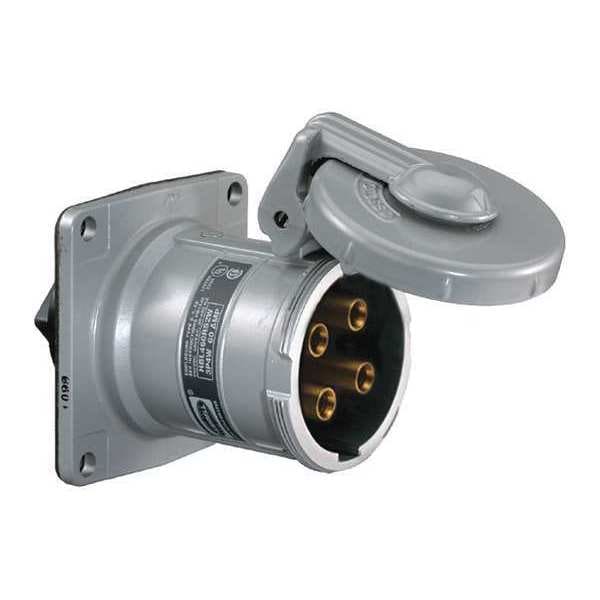

60A Pin & Sleeve Locking Receptacle 3P 4W 600VAC
| Item | Recipticale 4 Wire 3 Plug |
|---|---|
| Voltage | 250V DC/600V AC |
| Amps | 60 |
| Number of Poles | 2 Pole |
| Phase | Single/Three |
| Material | Thermoplastic |
| Standards | Certified for current interrupting at full rated current.; UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified |
| Application | Metallic with Nylon Shroud |
| Temp. Rise | Max 30A Deg Ctemperature rise at full rated current after 50 cycles of overload at 150% of rated current. |
| Wire Size | #6 To #4 AWG copper wire only |
| Terminal Designations | Terminals identified in accordance with UL1686 (1, 2, 3, Green). |
| Lock Type | insulgrip-devices |
| Flange Material | Epoxy Painted Aluminum |
| Flammability | UL 94V-0 and CSA C22.2 No.0.17 |
| Weight (Lbs.) | 2.4 |
| Operating Temp. | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 600V AC/250V DC |
| Wattage | 36000 |
| Type | Watertight Receptacle |
| Display Size | Standard Sized Product |
| Nema Rating | Non-NEMA |
| Series | UL 1686 Class 1 Insulgrip® |
| Item Type | Single Flanged-Reversed |
| Environmental Conditions | Watertight |
| Current Rating | 60 A |
| Style | Reversed Service,Style 2 Grounding |
| Amperage Rating | 60 A |
| Connectivity | Pressure Terminal Screws |
| Number Of Wires | 4-Wire |
| Current / Amperage Rating | 60 A |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
