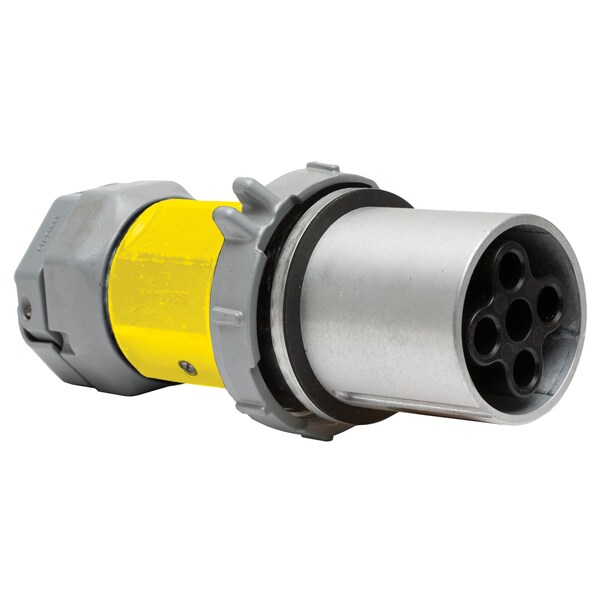

El conector marino de corriente alterna Hubbell Wiring Device-Kellems - M5200CS1R es ideal para uso en ambientes marinos, cuenta con una alta durabilidad y resistencia a la corrosión. Cumple con los estándares de seguridad y calidad para brindar un rendimiento confiable.
| Item - Plugs and Receptacles | Plug |
|---|---|
| Item | Ac Marine Connector |
| Body Material - Pin and Sleeve | Composite |
| Amps - Plugs and Receptacles | 200 A |
| Type | Watertight Plug |
| Voltage - Plugs and Receptacles | 250V DC/600V AC |
| Material | Composite |
| Current Rating | 200 A |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Number of Wires | 5 |
| Number of Poles | 4 |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Dust-Tight Seal, Watertight |
| Standards | CSA Certified to CSA Spec. C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed |
| Application | Metallic with Nylon Shroud |
| Outside Diameter | 11.13 in |
| Overall Length | 6.7 in |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Reverse Service | Yes |
| Housing Material | Composite |
| Connection Orientation | Straight |
| Number of Ground Connections | 5 |
| Voltage Rating | 250 V DC, 600 V AC |
| Cap Type | Spring-Loaded Cap |
| Wire Connection Type | Screw Terminals |
| For Maximum Cable Diameter | 2-1/2 in |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Silver |
| For Minimum Cable Diameter | 1 in |
| Grounding | Grounded |
| Shrouded | Yes |
| Contact Material | Brass |
| IP Rating | IP68, IP69K |
| Compatible with Series | Insulgrip |
| UL 94 Flammability Rating | V-0 |
| Minimum Wire Size | 1 AWG |
| NEMA Enclosure Rating | 4X |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 250 kcmil |
| Series | UL 1686 Class 1 Insulgrip® |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Reversed Service,Corrosion Resistant |
| Material - Mounting Hardware | Cord Mounted |
| Conductor Range | #1 AWG to #250 MCM |
| Nema Rating | Non-NEMA |
| Amperage Rating | 200 A |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010 |
| Current / Amperage Rating | 200 A |
| Insulation | Insulated Body |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Connectivity | Pressure Terminal Screws |
| Item Type | Standard |
| Voltage Rating Description | 600V AC/250V DC |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Environmental Conditions | Watertight |
| Number Of Conductors | 5-Wire Grounding |
| Display Size | Standard |
| Package Quantity | 1 |
