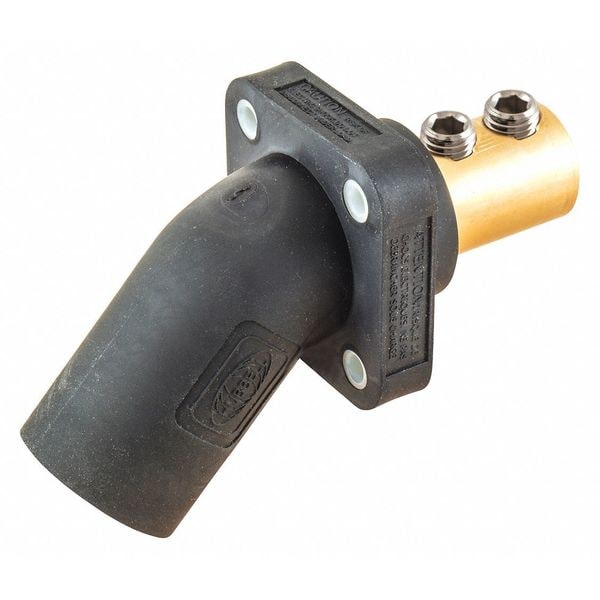

Este receptáculo angulado con clasificación NEMA 3R/4X/12 es ideal para aplicaciones industriales y comerciales. Fabricado por Hubbell Wiring Device-Kellems, garantiza un alto rendimiento y durabilidad.
| Item | Angled Receptacle |
|---|---|
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Fits | 16 Series Male |
| Standards | cULus Listed, UL Listed |
| Mounting | Panel |
| Material | Santoprene |
| Amps AC/DC | 300/400AC/DC |
| Conductor Material | Brass |
| Power Terminals Wire Size | #4 to 4/0 |
| Color | Black |
| Single Pole Device Style | Angle |
| Cable Range | 4 to 4/0 |
| Housing Color | Black |
| Flange Shape | Square |
| Connection Orientation | Angled |
| Housing Material | Thermoplastic Elastomer |
| Phase | Single |
| Minimum Wire Size | 4 AWG |
| Maximum Wire Size | 4/0 AWG |
| Gender | Male |
| End Type | Taper Nose |
| Terminal Connection Type | Double Set Screw |
| Mounting Style | Through Hole Mounting |
| Contact Material | Brass |
| Compatible with Series | 16 |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Package Quantity | 1 |
