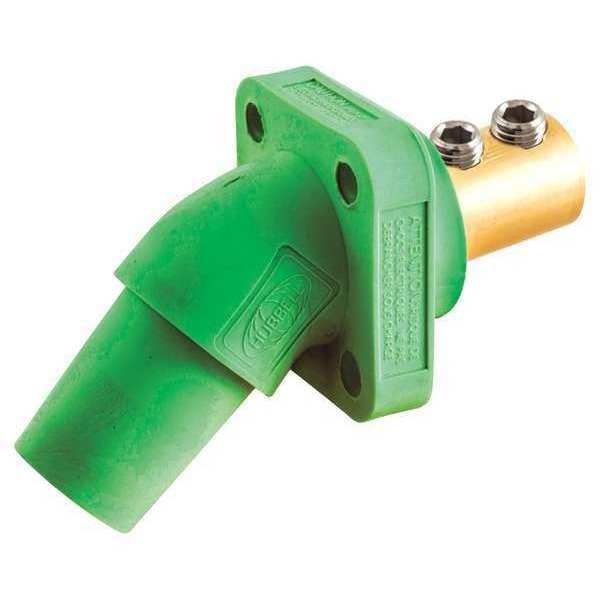

Este receptáculo angular de color verde está diseñado con doble tornillo de fijación para una conexión segura. Ideal para aplicaciones comerciales y residenciales.
| Item | Angled Receptacle |
|---|---|
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 4x |
| Amps AC/DC | 400 AC/DC |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Power Terminals Wire Size | #4 to 4/0 |
| Color | Green |
| Single Pole Device Style | Taper Nose |
| Cable Range | 4 to 4/0 |
| Mounting | Screw Mount |
| Fits | 16 Series Male |
| Conductor Material | Brass |
| Material | Thermoplastic Elastomer |
| Gender | Female |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 4 AWG |
| Housing Color | Green |
| Contact Material | Brass |
| Mounting Style | Through Hole Mounting |
| Overall Width | 2.2 in |
| End Type | Taper Nose |
| Housing Material | Thermoplastic Elastomer |
| Overall Length | 4.81 in |
| Connection Orientation | Angled |
| Compatible with Series | 16 |
| Phase | Single |
| Terminal Connection Type | Double Set Screw |
| Flange Shape | Square |
| Stud Thread Size | (2) 7/32" Socket Head Set Screw Termination; 4x #10-32 (Mounting Hole) |
| Maximum Wire Size | 4/0 AWG |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Package Quantity | 1 |
