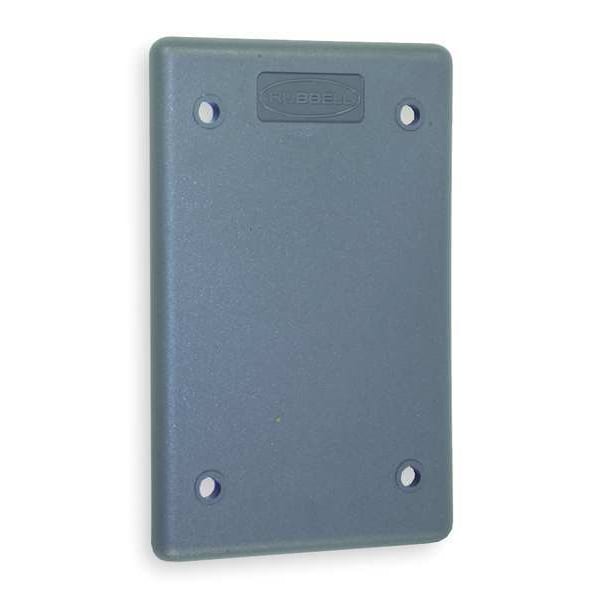

Las placas de pared en blanco de Hubbell Wiring Device-Kellems están fabricadas en termoplástico con un acabado de textura ligera en color gris. Diseñadas para un solo gang, ofrecen una solución elegante y duradera para cubrir salidas eléctricas sin uso.
| Number of Gangs | 1 |
|---|---|
| Item | Blank Wall Plates |
| Color | Gray |
| Material | Thermoplastic |
| Size | 4.64 in H x 2.94 in W |
| Finish | Light Texture |
| Weather Resistant | No |
| Tamper Resistant | No |
| Description/Special Features | UV Stabilized |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| Type | Cover Plate |
| Resistance Properties | Impact Resistant |
| Number of Outlet Openings | 0 |
| UL 94 Flammability Rating | V-0 |
| Compatible with Series | FS/FD Style |
| For Use With | Portable Outlet Box |
| Plate Size | Standard |
| Overall Width | 3.1 in |
| Shape | Rectangular |
| Overall Height | 0.4 in |
| Material Type | Non-Metallic |
| Mount Type | Surface |
| Number of Switch Openings | 0 |
| Wall Plate Type | Blank |
| Listings and Certifications | UL514C, UL467 and UL50 Enclosures Types 1, 3R. CSA C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No.0.4 (Impedance). |
| Indoor Cover Plate Screw Material | Zinc Plated Steel |
| Flammability | UL94 V-0, UL 94V0, 94-5VA classification. |
| Impact and Crush Resistance | In accordance with UL 514C, UL50, C22.2 N0. 18 and C22.2 No. 94 |
| Operating Temperatures | 80 ° C Maximum; -35 ° C Minimum. |
| UV Resistance | All materials are UV Stabilized. |
| Cover Plate Gasket Material | UL Closed-Cell Foam (aging and oil resistant). |
| Moisture Resistance | Wet and Damp locations, Enclosure Type 3R when used with weatherproof cover plates. Dry, indoor locations, Enclosure Type 1 with all other cover plates. |
| Outdoor Cover Plate Screw Material | Stainless Steel |
| Device Color | Gray |
| Portable Outlet Box | Portable Outlet Box Plates |
| POB Style | Blank Non-Metallic FS Cover Plate |
| Display Size | 1-Gang |
| Number Of Outlets | 1-Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Non-Metallic Fs Cover Plate |
| Performance | Environmental - Flammability - UL94 V-0 |
| Application | No Openings |
| Material - Mounting Hardware | Screws |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Knockouts | None |
| Construction | Molded |
| Item Type | Covers |
| Package Quantity | 1 |
