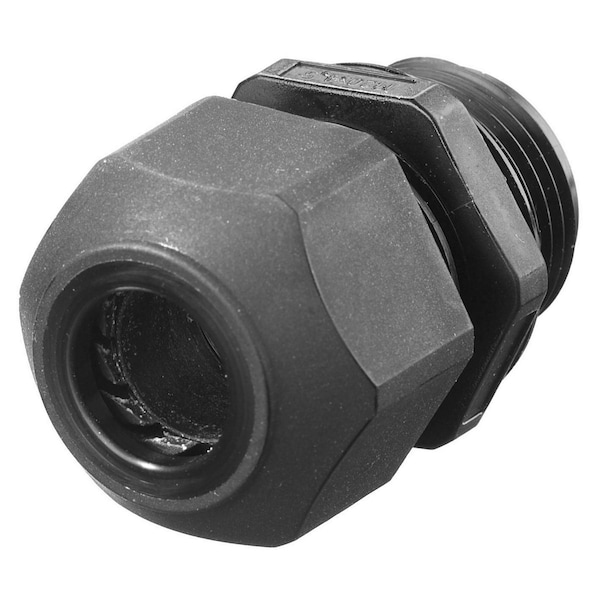

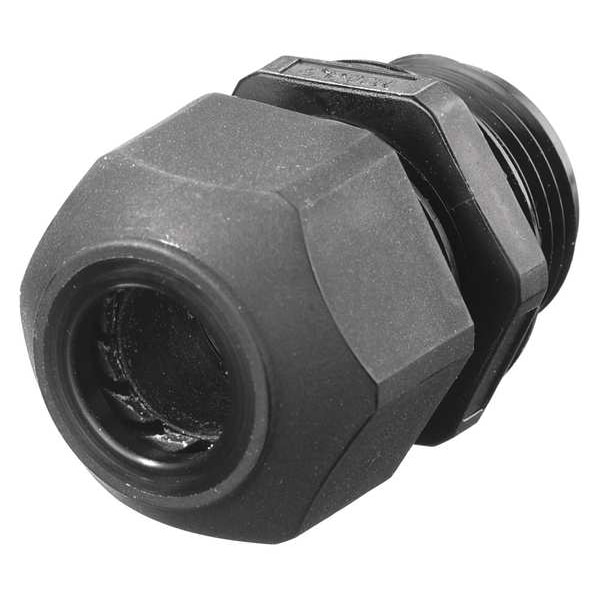

Cable Connector, 1 In, Straight, Black
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Cord Connector |
| Male/Female | Male |
| Style - Connector | Straight |
| Hub Size | 1 in MNPT |
| Material | Nylon |
| Cord Dia. Range | 0.59 to 1 in |
| Color | Black |
| Box Connection | 1 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Gland Color Code | No Code |
| Number of Cords | 1 |
| Standards | CSA C22.2 No. 18, UL 514B, VDE |
| Body Color - Cord Connector | Black |
| Connector Type | Straight |
| Length - Box to End of Connector | 2-7/16 in |
| Strain Relief Type | No External Strain Relief |
| Insulated | Yes |
| Length | 2.41 in |
| Hazardous Location Rating | Not Rated |
| Length - External Strain Relief | No External Strain Relief |
| Min. Throat Dia. | 0.98 in |
| Series | Low Profile NPT |
| Collar Material | Nylon |
| Overall Length | 2-7/16 in |
| IP Rating | IP66 |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Thread Size | 1 in |
| Body Material | Nylon |
| Thread Gender | Male |
| Maximum Operating Temperature | 225 deg F |
| Liquid Tight | Yes |
| Minimum Operating Temperature | -22 deg F |
| For Maximum Cable OD | 1 in |
| Compatible Conduit Trade Size | 1 in |
| Environmental Rating | Not Flammable |
| Thread Type | NPT Thread |
| Body Color | Black |
| For Minimum Cable OD | 0.59 in |
| Grommet Color Code | No Code |
| Connection Orientation | Straight |
| Flammability | UL 94 V-0 |
| Dimension C | .984 |
| Product Type | Cord Connectors |
| Material/Style | Nylon Low Profile |
| Dimension F | 1.654 in |
| Operating temperature | -30°C to 100°C |
| Certifications | UL 514B, CSA C22.2 No. 18 |
| Dimension E | 1.85 in |
| Protection Class | IP68 |
| Cord Connector Body Style | Straight Male |
| Dimension D | 1.00" |
| Dimension A | 1.654 in |
| Cord Diameter Range | .59"- 1.00" |
| Dimension B | 0.984 in |
| Sealing Grommet Material | Neoprene |
| Package Quantity | 1 |
