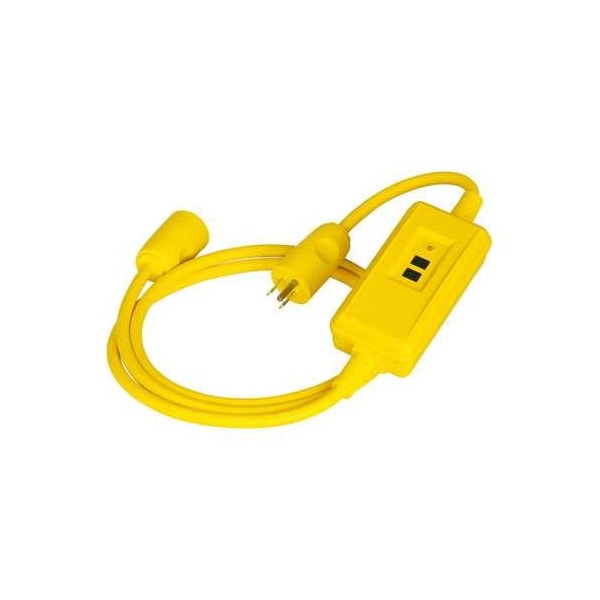

Cordón de línea portátil GFCI de servicio pesado extra con ajuste automático, diseñado para proporcionar protección contra corrientes de fuga en entornos industriales y comerciales. Con capacidad de 15 amperios y voltaje de 120V AC, color amarillo para alta visibilidad.
| Item | Self-Test Portable GFCI |
|---|---|
| Number of Outlets | 1 |
| Voltage | 120 V AC |
| Receptacle Configuration | NEMA 5-15R |
| Plug Configuration | NEMA 5-15P |
| Reset Type | Automatic |
| Max. Amps | 15 |
| Enclosure Rating | NEMA 3R |
| Wire Size | 14 AWG |
| Cord Length | 1 ft 6 in |
| Color | Yellow |
| Trip Level | 4 to 6 mA |
| Receptacle Cord Length | 4 in |
| Number of Conductors | 3 |
| Trade Designation | SJTW |
| Plug Style | Straight |
| Plug Cord Length | 9 in |
| Type | Line Cord |
| Housing Material | PVC |
| Self-Testing | Yes |
| Standards | CSA, UL Listed |
| Hz | 60 |
| Nominal Outside Dia. | 0.36 in |
| Application | Line Cord with Male/Female Ends |
| Item Type | Straight Blade |
| Strands | Multi |
| Outside Diameter | 0.245 |
| Conductor Type | Copper |
| Current Rating | 15 A |
| Amperage Rating | 15 A |
| Temperature Rating | -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F) |
| Construction | Fabricated |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 120 VAC |
| Industry Standard(s) | UL Listed |
| Series | Extra Heavy Duty |
| Material - Insulation | Elastomer |
| Conductor Size | #14 AWG |
| Connectivity | Plug-In |
| Material - Jacket | PVC |
| Style | Automatic Set |
| Package Quantity | 1 |
