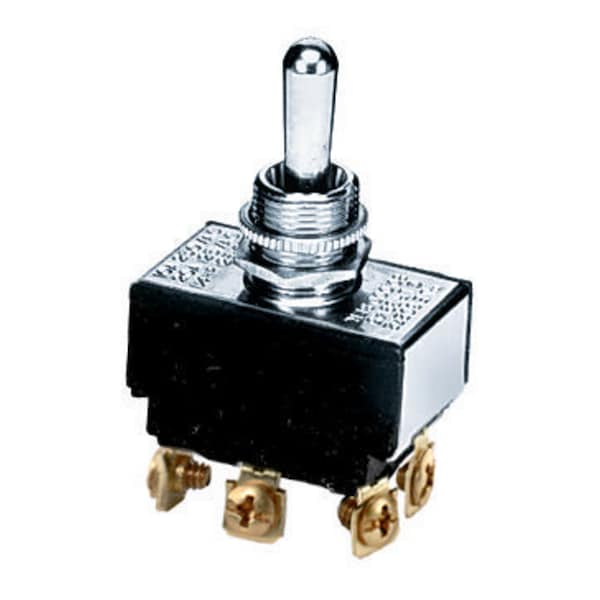

Interruptores comerciales de montaje en panel y especializados, interruptores de palanca de batalla, doble polo doble tiro centro apagado 10A 250V/10A 125V, tornillo.
| Height | 1.3 in |
|---|---|
| Width | 0.76 in |
| Color | Metallic |
| Series | Double Pole/Double Throw |
| Item | Panel Mount and Bat Handle Switch |
| Connectivity | Screw Terminals |
| Amperage | 10/20 A |
| Mounting Method | Panel Mount |
| Voltage Rating | 250/125 VAC |
| Type | General Purpose |
| Number Of Poles | Double Pole |
| Carton Quantity | 10 |
| Action | DPDT |
| Performance | Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact |
| Current Rating | 10/20 A |
| Maximum Horsepower | 1.5 |
| Dimensions | 2.27 in x 0.76 in x 1.3 in |
| Style | Screw Terminal |
| Length | 2.27 in |
| Panel Switch Style | Double Pole, Double Throw, 3 Position Center Off |
| Terminal | Screw |
| Product Type | Panel-switches |
| Panel Switch Type | Bat Handle |
| Terminal Style | Screw |
| Listing and Certifications | UL Recognized |
| Operating Temperatures | Max Continuous- 75°C, Minimum -40°C Without Impact |
| Power Rating | 10A 250V AC, 20A 125V AC, 1 1/2 HP |
| Industry Standard(s) | UL Listed |
| Item Type | Bat Handle Switch, Panel Mount |
| Current / Amperage Rating | 10/20 A |
| Amperage Rating | 10/20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 1.5 |
| Package Quantity | 1 |
