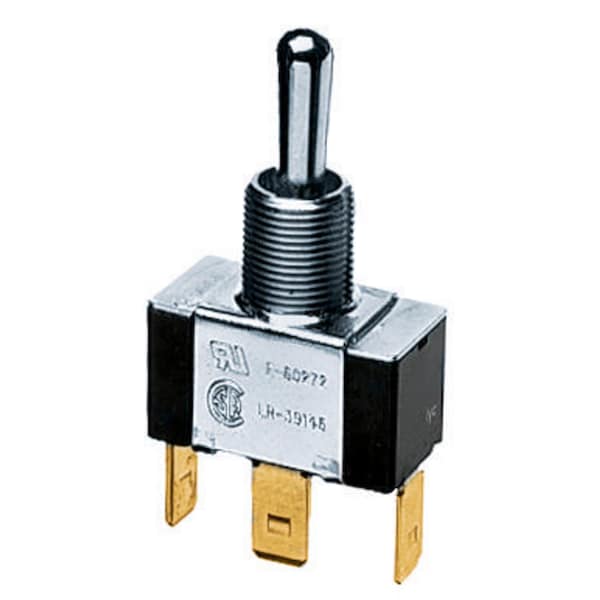

Grado comercial, interruptores montados en panel y especializados, interruptores tipo bat, de un polo doble tiro con posición central apagado, 10A 250V/10A 125V.
| Series | Single Pole/Double Throw |
|---|---|
| Color | Metallic |
| Height | 1.12 in |
| Item | Panel Mount and Bat Handle Switch |
| Width | 0.56 in |
| Length | 2.15 in |
| Voltage Rating | 250/125 VAC |
| Panel Switch Style | Single Pole, Double Throw, 3 Position Center Off |
| Carton Quantity | 10 |
| Panel Switch Type | Bat Handle |
| Mounting Method | Panel Mount |
| Number Of Poles | Single Pole |
| Amperage | 10/20 A |
| Listing and Certifications | UL Recognized |
| Current Rating | 10/20 A |
| Item Type | Bat Handle Switch, Panel Mount |
| Type | General Purpose |
| Power Rating | 10A 250V AC, 20A 125V AC, 3/4 HP |
| Industry Standard(s) | UL Listed |
| Terminal Style | Screw |
| Terminal | Screw |
| Performance | Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact |
| Current / Amperage Rating | 10/20 A |
| Dimensions | 2.15 in x 0.56 in x 1.12 in |
| Operating Temperatures | Max Continuous- 75°C, Minimum -40°C Without Impact |
| Action | SPDT |
| Maximum Horsepower | 0.75 |
| Connectivity | Screw Terminals |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 0.75 |
| Amperage Rating | 10/20 A |
| Style | Screw Terminal |
| Product Type | Panel-switches |
| Package Quantity | 1 |
