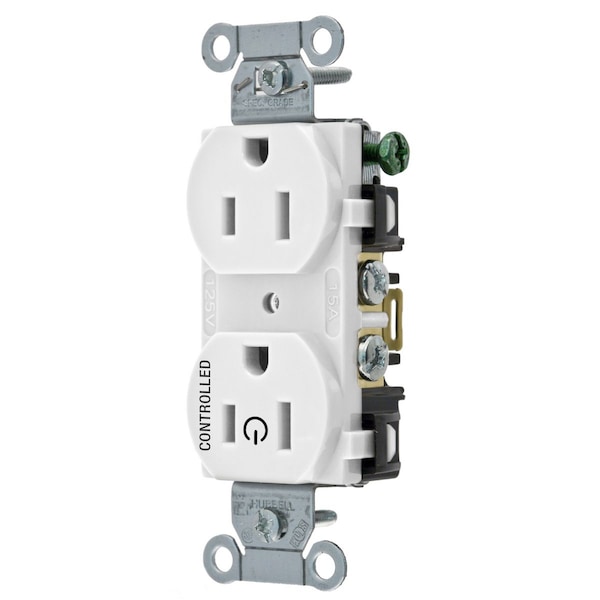

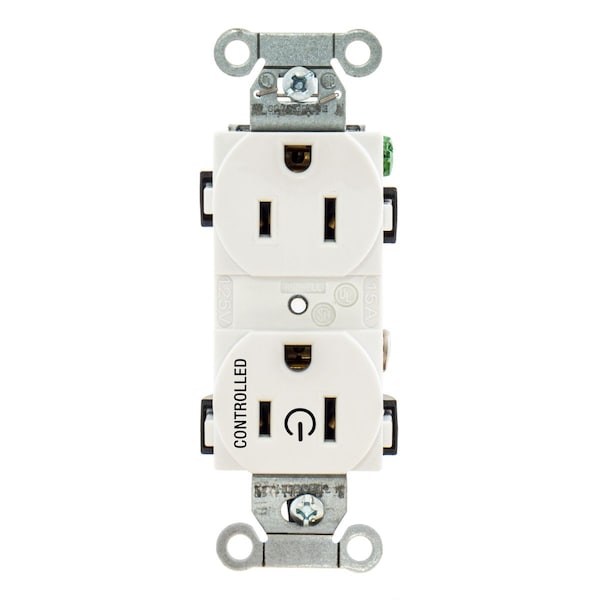

Commercial Specification Grade Duplex Receptacles for Controlled Applicatoins
| Material | Nylon |
|---|---|
| Color | White |
| Type | Split Circuit, One Controlled Face |
| Style | Smooth Face |
| Maximum Horsepower | 0.5 |
| Carton Quantity | 10 |
| Wire Size | #14 AWG to #10 AWG |
| Application | Commercial Specification Grade |
| Voltage Rating | 125 V |
| Connectivity | Back and Side Wired |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item | Traditional Duplex |
| Number Of Poles | 2-Pole |
| Nema Rating | 5-15R |
| Current Rating | 15 A |
| Amperage | 15 A |
| Series | Controlled |
| Number Of Wires | 3-Wire |
| Terminal Accommodation | stranded, solid copper wire only |
| Mounting Strap | .040 in. Galvanized steel |
| Automatic Self-grounding Staple | Stainless steel |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Mounting Screws | Galvanized Steel |
| Face | Nylon |
| Terminal Screws | Steel |
| Flammability | UL 94 V-2 |
| Dielectric Voltage | Withstands 2,000V minimum |
| Ground Contacts | Brass |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Device Color | White |
| Base | Nylon |
| Wire Clamp | .062 in. (1.6) Nickel plated steel |
| Power Contacts | .030 in. Brass |
| Package Quantity | 1 |
