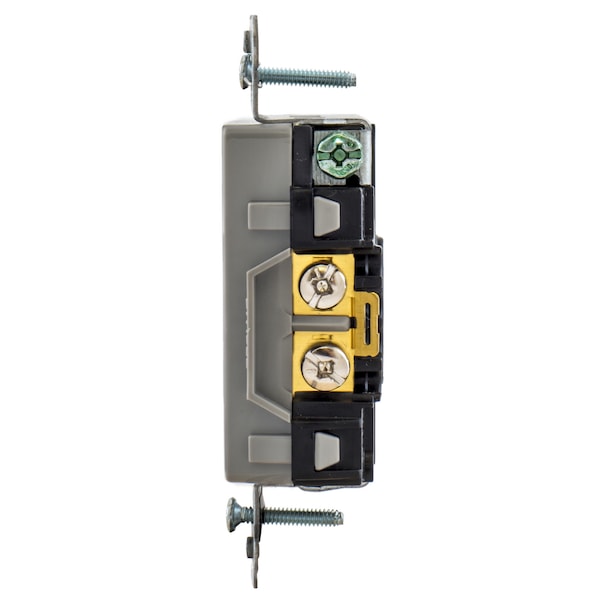

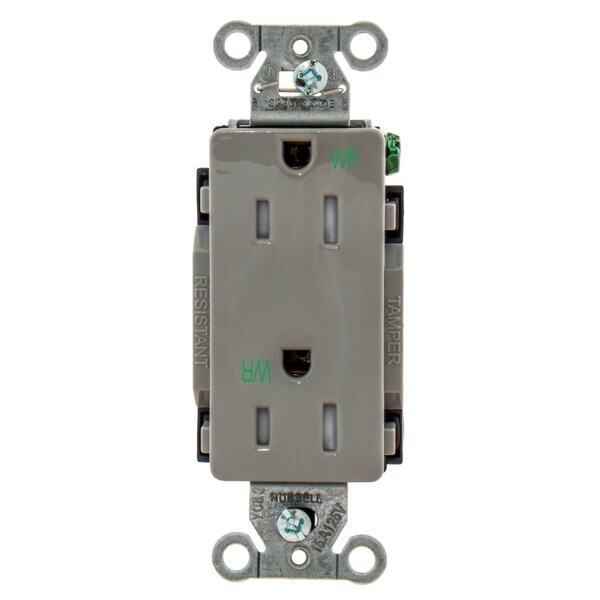

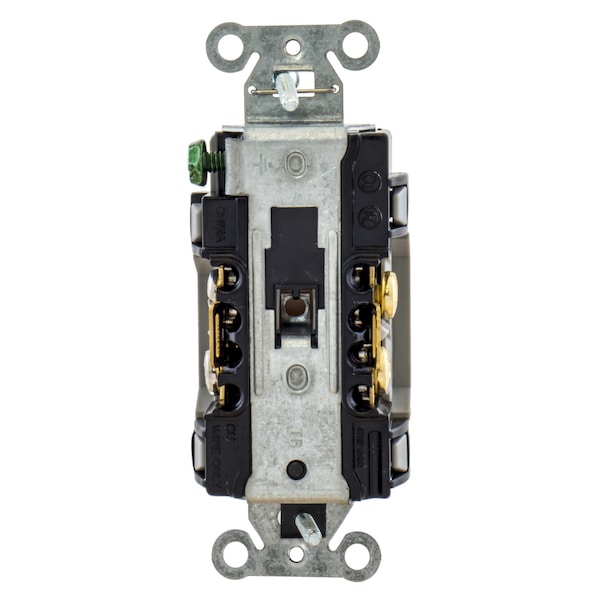

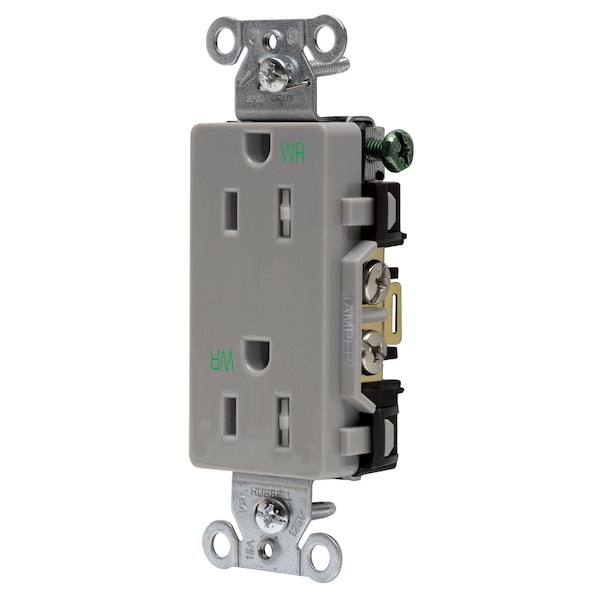

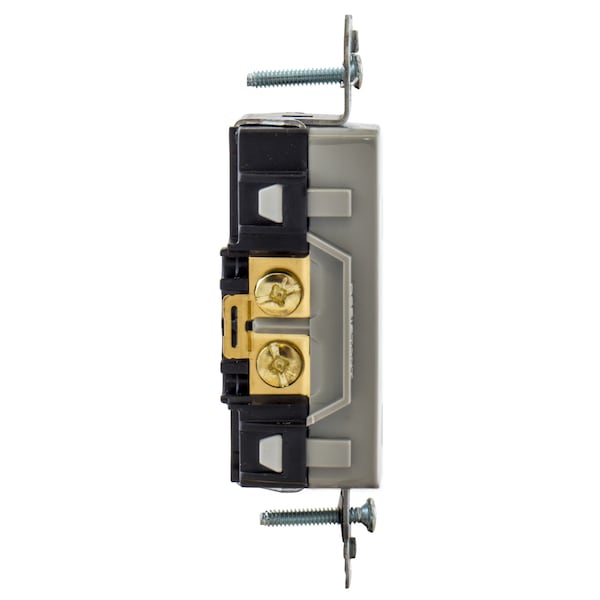

Commercial Specification Grade Style Line Decorator Duplex Receptacles
| Color | Brown |
|---|---|
| Wiring Method | Back and Side Wired |
| Voltage | 125 V |
| Type | Grounding, 2 Pole, 3 Wire |
| Dielectric Voltage | Withstands 2,000V minimum |
| Receptacle Grade | StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant |
| Horsepower | 0.5 |
| Mounting Strap Material | Steel |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Base Material | Nylon |
| Flammability | UL 94 V-2 |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Mounting Screw Material | Steel-Zinc Plated |
| Standard | NEMA |
| Face Shape | Decorator |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Amperage | 15 A |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Product Type | Flush-receptacles |
| Top Material | Nylon |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Other Available Colors | Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Auto Ground Clip Material | Stainless Steel |
| Face Style | Smooth Face |
| Power Contacts Material | .030" Brass |
| Rating | 15A, 125V |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| NEMA No. | 5 to 15 R |
| Device Color | Gray |
| Package Quantity | 1 |
