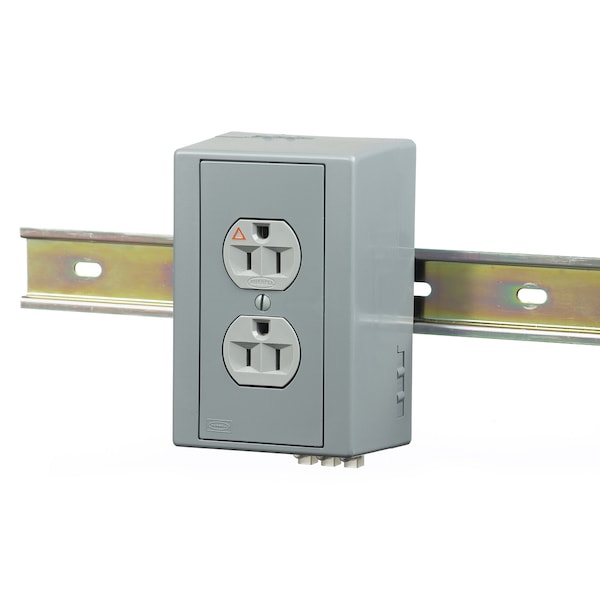

Complete Unit- IG, DIN Rail Box, 15A, IG, Gray
| Width | 3.31 in |
|---|---|
| Color | Gray |
| NEMA Configuration | 5-15R |
| Height | 2.54 in |
| Type | Box, Device |
| Length | 5.62 in |
| DIN Rail Utility Box Variety | Complete Unit with IG |
| Device Rating | 15A, 125V |
| Device Color | Gray |
| DRUB Mounting | Vertical |
| Product Type | Drub |
| Certifications | CSA Certified, UL Listed |
| Amperage Rating | 15 A |
| Dimensions | 5.62 in x 3.31 in x 2.54 in |
| Number Of Poles | 2-Pole |
| Item Type | Complete Unit |
| Industry Standard(s) | UL Listed |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #14 AWG to #12 AWG |
| Cable Entry | Terminals |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Construction | Molded and Fabricated |
| Material - Mounting Hardware | Mount |
| Voltage Rating Description | 125 V |
| Display Size | Standard Sized Product |
| Nema Rating | 5-15R |
| Current / Amperage Rating | 15 A |
| Number Of Wires | 3-Wire |
| Knockouts | None |
| Horsepower - Maximum | 0.5 |
| Package Quantity | 1 |
