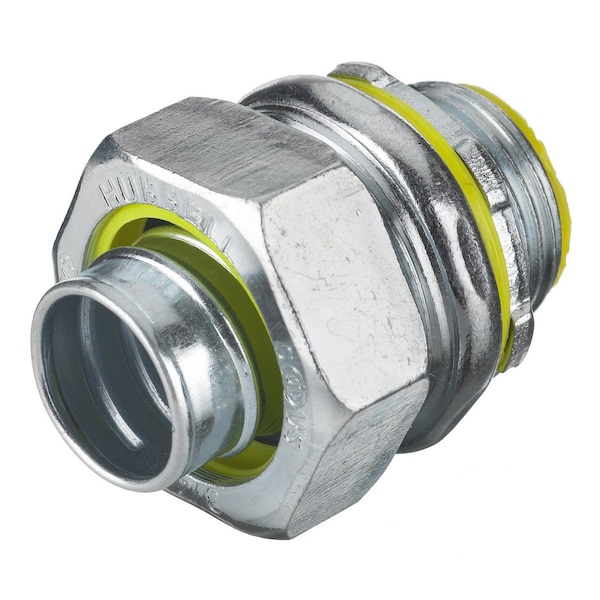

Conduit Fitting Connector, 1-1/4 in, Liquid-Tight, Steel
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Connector |
| Trade Size | 1-1/4 in |
| Connection Type | Liquid-Tight |
| Material | Steel |
| Overall Length | 2.031 in |
| Application | For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit |
| Min. Throat Dia. | 1.37 in |
| Connector Type | Straight |
| Type | Metallic Liquidtight Fittings |
| Hazardous Location Rating | Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2 |
| Insulated | Yes |
| Thread Size | 1-1/4-11-1/2 NPT |
| Standards | UL Listed, CSA Certified |
| Width | 2.187 in |
| Liquid Tight / Dust Tight | Liquid Tight |
| Hazardous Location | Yes |
| Width (mm) | 55.5498 |
| Style | Straight |
| Carton Quantity | 5 |
| Dimension - Width mm | 2.187 in |
| Industry Standard(s) | CSA Certified UL 514B |
| Performance | Environmental - Operating Temperature - to60°F to +1000°F (to51°C to +538°C) Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B) |
| Dimension - L Length Overall mm | 2.031 in |
| Dimension - Thread Size | 1-1/4"-11-1/2 NPT |
| Package Quantity | 1 |
