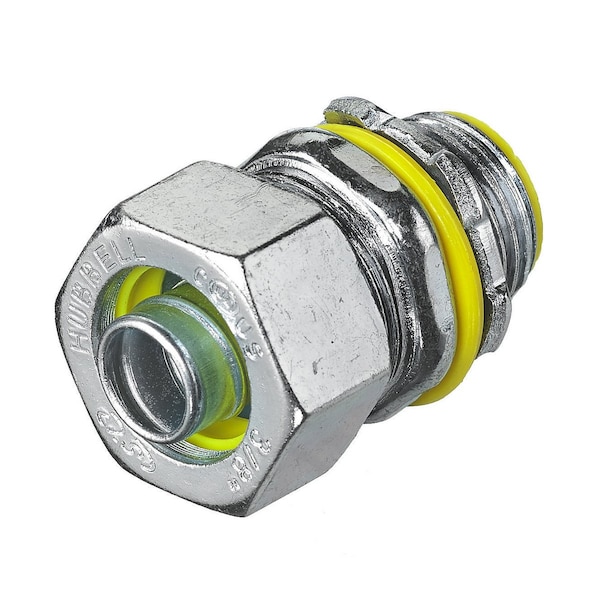

Conduit Fitting Connector, 3/8 in, Liquid-Tight, Steel
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Connector |
| Trade Size | 3/8 in |
| Connection Type | Liquid-Tight |
| Material | Steel |
| Overall Length | 1.437 in |
| Insulated | Yes |
| Width | 1.062 in |
| Application | For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit |
| Thread Size | 1/2-14 NPT |
| Hazardous Location | Yes |
| Connector Type | Straight |
| Standards | UL Listed, CSA Certified |
| Hazardous Location Rating | Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2 |
| Liquid Tight / Dust Tight | Liquid Tight |
| Type | Metallic Liquidtight Fittings |
| Min. Throat Dia. | 0.61 in |
| Carton Quantity | 25 |
| Width (mm) | 26.9748 |
| Style | Straight |
| Dimension - L Length Overall mm | 1.437 in |
| Performance | Environmental - Operating Temperature - to60°F to +1000°F (to51°C to +538°C) Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B) |
| Dimension - Width mm | 1.062 in |
| Dimension - Thread Size | 1/2"-14 NPT |
| Industry Standard(s) | CSA Certified UL 514B |
| Package Quantity | 1 |
