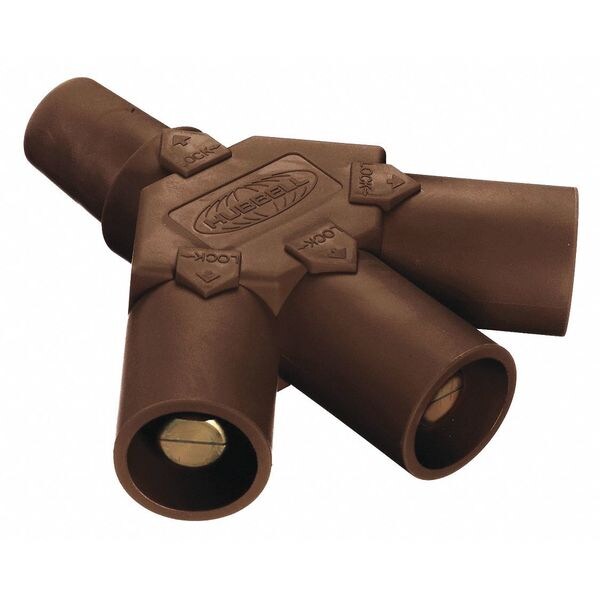

Este conector de alta calidad es resistente a la intemperie y puede soportar 12,600VAC/250VDC. Ideal para aplicaciones industriales y comerciales.
| Item | Triple Connector |
|---|---|
| Series | 16 |
| Terminal Connection | N/A |
| Male/Female | Female-Male-Male-Male |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Standards | cUL, UL |
| Single Pole Device Style | Taper Nose |
| Material | Thermoplastic Elastomer |
| Fits | UL1691 |
| Cable Range | N/A |
| Color | Brown |
| Conductor Material | Brass |
| Amps AC/DC | 300/400AC/DC |
| Product Type | 3-Fer |
| Gender Configuration | Female-Male-Male-Male |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Color | Brown |
| Housing Material | Thermoplastic Elastomer |
| Overall Width | 1.48 in |
| Contact Material | Brass |
| Overall Height | 6.04 in |
| Maximum Operating Temperature | 75 Degrees C |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Compatible with Series | 16 |
| Overall Length | 5.78 in |
| Package Quantity | 1 |
