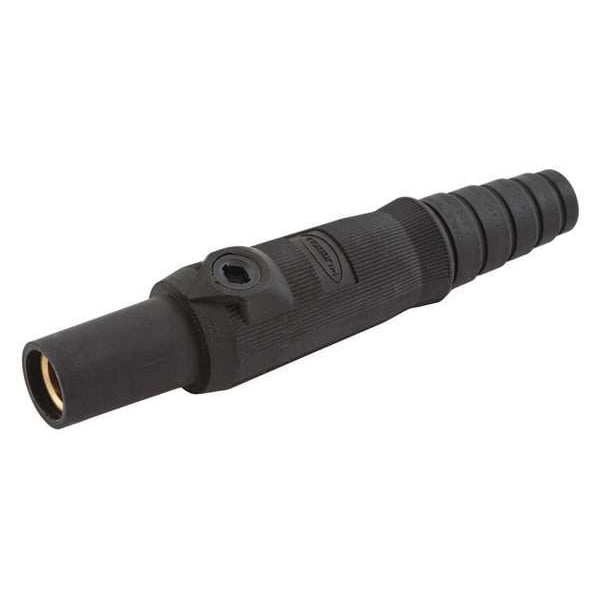

Connector, 3R, 4X, 12, Female, Black, 8-2
| Item | Connector |
|---|---|
| Type | Plugs |
| Series | 15 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Single Pole Device Style | Taper Nose |
| Conductor Material | Brass |
| Cable Range | 8 to 2 |
| Color | Black |
| Power Terminals Wire Size | #8 to #2 AWG |
| Fits | UL1691 |
| Material | Thermoplastic Elastomer |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Amps AC/DC | 150 AC/DC |
| Mounting | Plugs, Female |
| Amps AC | 150 A |
| Housing Color | Black |
| Overall Length | 4.6 in |
| Overall Width | 1 in |
| Maximum Operating Temperature | 75 Degrees C |
| Gender | Female |
| End Type | Taper Nose |
| Housing Material | Thermoplastic Elastomer |
| Compatible with Series | 15 |
| Maximum Wire Size | 2 AWG |
| For Location | Indoor |
| Minimum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Contact Material | Brass |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Contact Type | Single Cam |
| Terminal Connection Type | Double Set Screw |
| Number Of Conductors | 1 Conductor |
| Number Of Poles | 1-Pole |
| Insulation | Insulated Body |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Conductor Range | #8 AWG to #2 AWG SC/PPC Wire |
| Material - Mounting Hardware | Cord Mounted |
| Application | Temporary Electrical Power |
| Display Size | Standard |
| Amperage Rating | 150 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG |
| Style | Female |
| Item Type | Female Plug |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Connectivity | Set Screw |
| Current / Amperage Rating | 150 A |
| Voltage Rating Description | 600V AC/DC |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Package Quantity | 1 |
