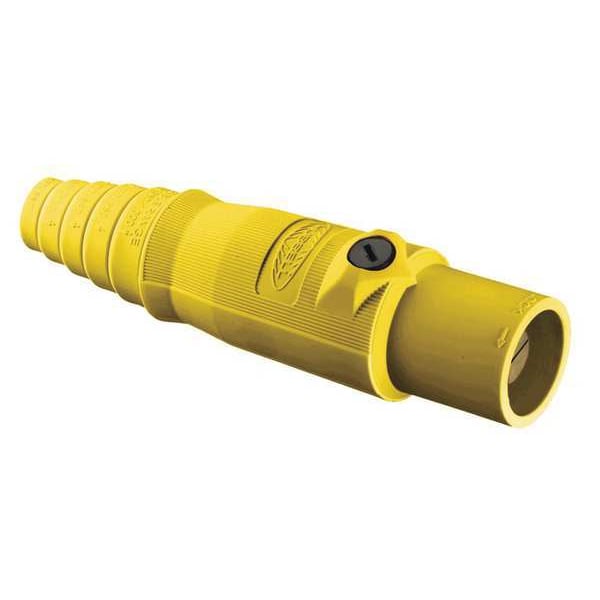

Connector, 3R, 4X, 12, Male, Yllow, 6 to 2/0
| Item | Connector |
|---|---|
| Type | Plugs |
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 300 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Single Pole Device Style | Taper Nose |
| Conductor Material | Brass |
| Fits | UL1691 |
| Material | Thermoplastic Elastomer |
| Cable Range | 6 to 2/0 |
| Color | Yellow |
| Amps AC/DC | 300 AC/DC |
| Power Terminals Wire Size | #6 to 2/0 |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Amps AC | 300 A |
| Contact Material | Brass |
| Minimum Wire Size | 6 AWG |
| UL 94 Flammability Rating | HB |
| Housing Material | Thermoplastic Elastomer |
| Overall Width | 1.95 in |
| Gender | Male |
| Terminal Connection Type | Double Set Screw |
| End Type | Taper Nose |
| Housing Color | Yellow |
| Overall Length | 7.01 in |
| Compatible with Series | 15; 16; Insulgrip |
| Maximum Wire Size | 2/0 AWG |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Current / Amperage Rating | 300 A |
| Amperage Rating | 300 A |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Style | Male |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #6 to 2/0 AWG |
| Voltage Rating Description | 600V AC/DC |
| Package Quantity | 1 |
