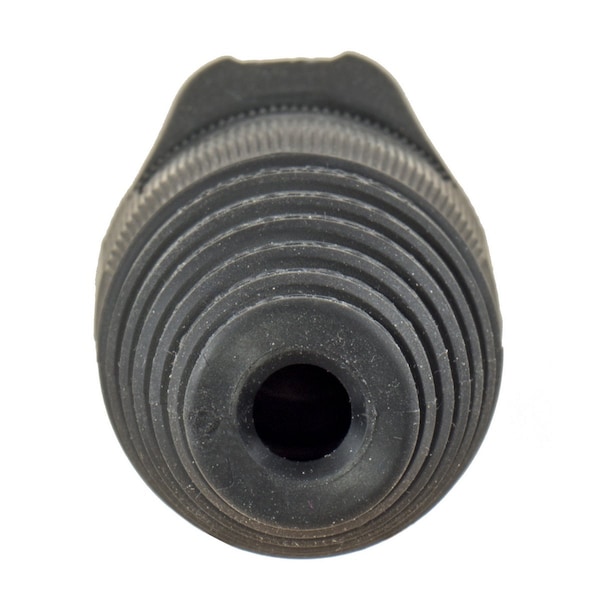

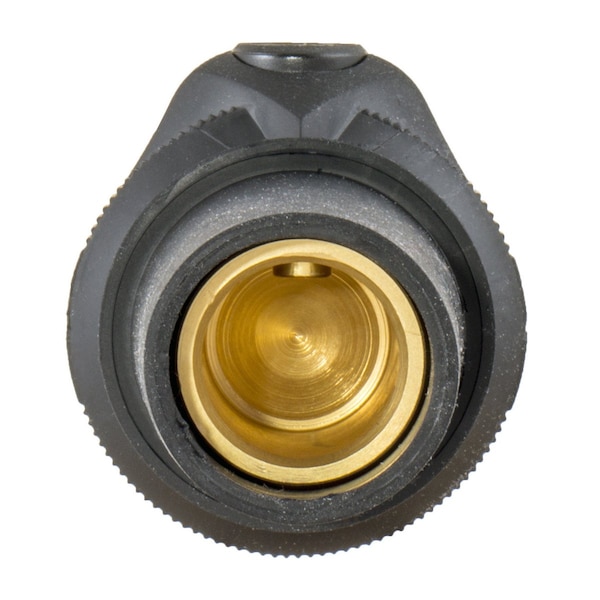

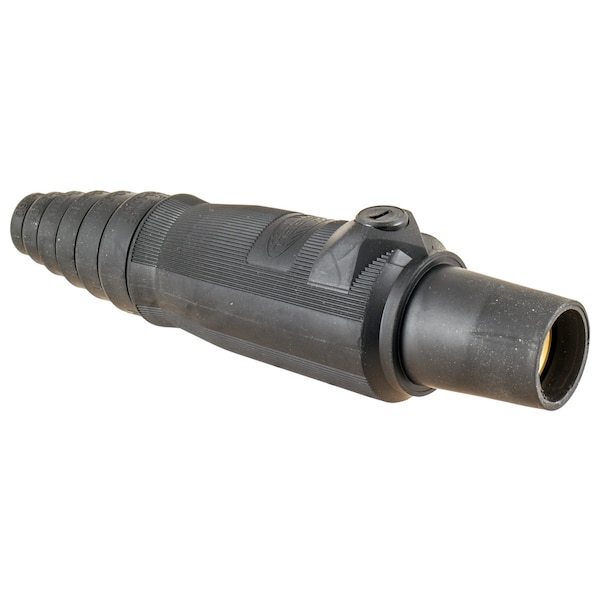

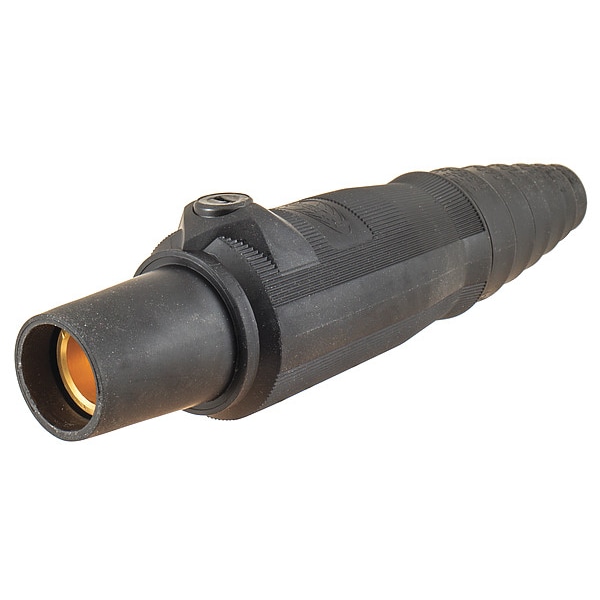

Conector doble negro hembra de punta. Ideal para conexiones eléctricas seguras y confiables.
| Item | Connector |
|---|---|
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12K, 3R, 4X |
| Color | Black |
| Cable Range | 2/0 to 4/0 |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Amps AC/DC | 400 AC/DC |
| Material | Thermoplastic Elastomer |
| Single Pole Device Style | Taper Nose |
| Conductor Material | Brass |
| Amps AC | 400 A |
| Overall Length | 7.1 in |
| Overall Width | 1.95 in |
| Gender | Female |
| Housing Material | Thermoplastic Elastomer |
| Terminal Connection Type | Double Set Screw |
| Housing Color | Black |
| Contact Material | Brass |
| Contact Type | Single Cam |
| NEMA Enclosure Rating | 3R, 12, 4X |
| End Type | Taper Nose |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 4/0 AWG |
| Minimum Wire Size | 2/0 AWG |
| Compatible with Series | 16 |
| Package Quantity | 1 |
