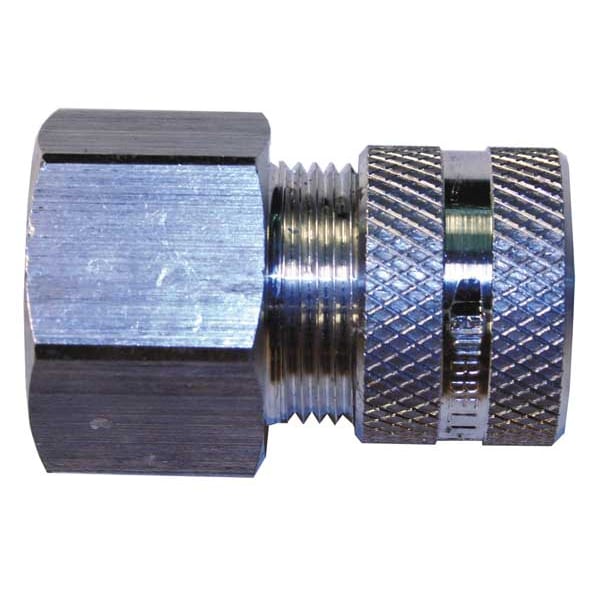

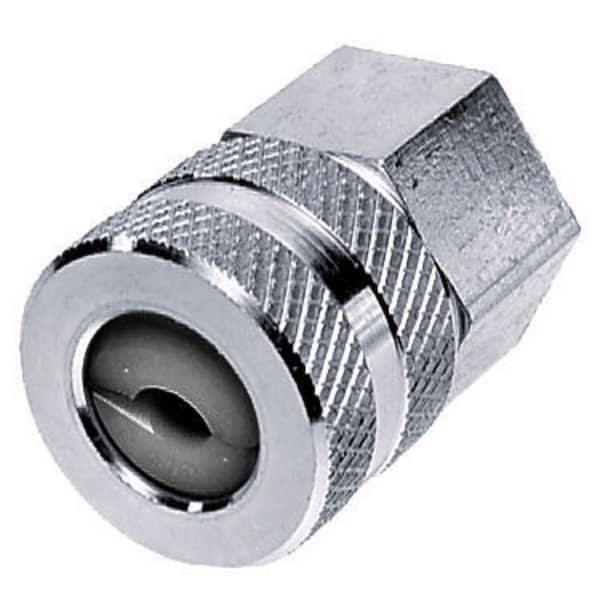

Cord Connector, 1 in., Straight, Gray
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Cord Connector |
| Male/Female | Male |
| Style - Connector | Straight |
| Hub Size | 1 in MNPT |
| Material | Aluminum |
| Cord Dia. Range | 0.88 to 1 in |
| Color | Gray |
| Box Connection | 1 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Aluminum |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Gland Color Code | Gray |
| Standards | CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval |
| Number of Cords | 1 |
| Connector Type | Straight |
| Body Color - Cord Connector | Silver |
| Length - Box to End of Connector | 2-5/16 in |
| Strain Relief Type | No External Strain Relief |
| Length | 2.3 in |
| Insulated | No |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Length - External Strain Relief | No External Strain Relief |
| Min. Throat Dia. | 1.1 in |
| Environmental Rating | Hazardous Locations |
| Liquid Tight | Yes |
| Compatible Conduit Trade Size | 1 in |
| Body Color | Silver |
| Minimum Operating Temperature | -30 deg F |
| Connection Orientation | Straight |
| Thread Gender | Female |
| Thread Size | 1 in |
| Form Size | F4 |
| Collar Material | Aluminum |
| Maximum Operating Temperature | 225 deg F |
| Thread Type | NPT Thread |
| Grommet Color Code | Gray |
| Body Material | Aluminum |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Color Code | Gray |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Hazardous Locations | Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b). |
| Recommended Knockout Hole Size | 1.36"- 1.41" (34.5-35.7) |
| Cord Diameter Range | .88"- 1.00" |
| Material/Style | Aluminum |
| Dimension B | 2.30" (58.4) Ref. |
| Dimension A | 1-3/4 in |
| Dimension D | 1.10" Throat Dia. |
| Dimension C | .88" |
| Cord Connector Body Style | Straight Female |
| Certifications | UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111. |
| Dimension E A/F | 1.63 in |
| Product Type | Cord Connectors |
| Dimension E A/C | 1.88 in |
| Effective Operating Temperature | -30°F to +225°F |
| Package Quantity | 1 |
