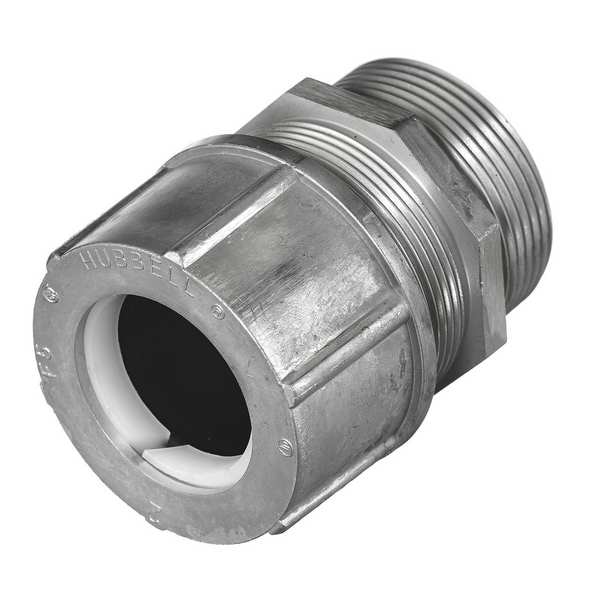

Cord Connector, 1 in., Straight, White
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Cord Connector |
| Style - Connector | Straight |
| Male/Female | Male |
| Hub Size | 1 in MNPT |
| Material | Aluminum |
| Cord Dia. Range | 0.88 to 1 in |
| Box Connection | 1 in MNPT |
| Color | White |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Aluminum |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1" |
| Gland Color Code | No Code |
| Liquid Tight / Dust Tight | Liquid Tight |
| Standards | CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval |
| Number of Cords | 1 |
| Body Color - Cord Connector | Silver |
| Connector Type | Straight |
| Length - Box to End of Connector | 1-11/16 in |
| Length - External Strain Relief | No External Strain Relief |
| Strain Relief Type | No External Strain Relief |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Length | 2.36 in |
| Min. Throat Dia. | 1.01 in |
| Insulated | No |
| Collar Material | Aluminum |
| Grommet Color Code | No Code |
| Thread Type | NPT Thread |
| For Minimum Cable OD | 0.88 in |
| Minimum Operating Temperature | -30 deg F |
| Body Color | Silver |
| Bushing Material | Neoprene |
| Thread Gender | Male |
| NEMA Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X |
| Connection Orientation | Straight |
| Liquid Tight | Yes |
| Thread Size | 1 in |
| Body Material | Aluminum |
| IP Rating | IP66 |
| For Maximum Cable OD | 1 in |
| Form Size | F5 |
| Environmental Rating | Hazardous Locations |
| Maximum Operating Temperature | 225 deg F |
| Compatible Conduit Trade Size | 1 in |
| Overall Length | 2-3/8 in |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Certifications | UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111. |
| Dimension E A/C | 2.28 in |
| Cord Connector Body Style | Straight Male |
| Dimension C | .66" |
| Cord Diameter Range | .88"- 1.00" |
| Dimension A | 2.31 in |
| Material/Style | Aluminum |
| Product Type | Cord Connectors |
| Dimension B | 1.70" (43.2) Ref. |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Dimension D | 1.01" Throat Dia. |
| Recommended Knockout Hole Size | 1.36"- 1.41" (34.5-35.7) |
| Hazardous Locations | Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b). |
| Dimension E A/F | 2 in |
| Effective Operating Temperature | -30°F to +225°F |
| Color Code | White |
| Number Of Conductors | Single |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Application | Straight Male- Form 5 |
| Type | Straight Male |
| Industry Standard(s) | UL Listed |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Series | Standard Duty |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C) |
| Conductor Range | 0.88 to 1 in |
| Item Type | Cord Connectors |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Display Size | 1" NPT |
| Package Quantity | 1 |
