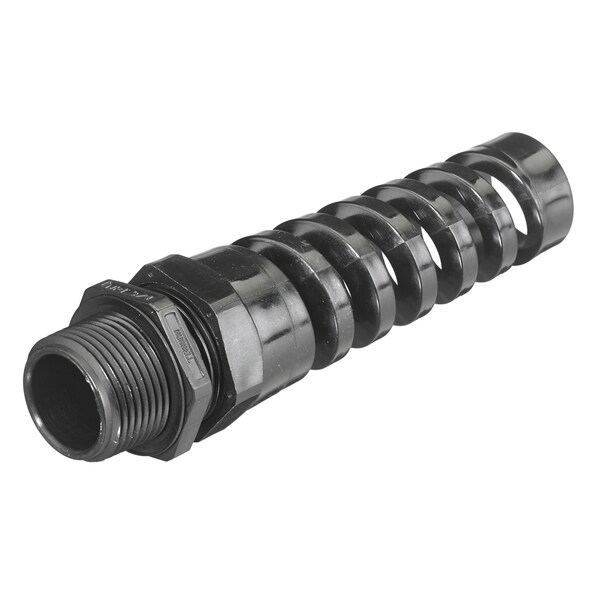

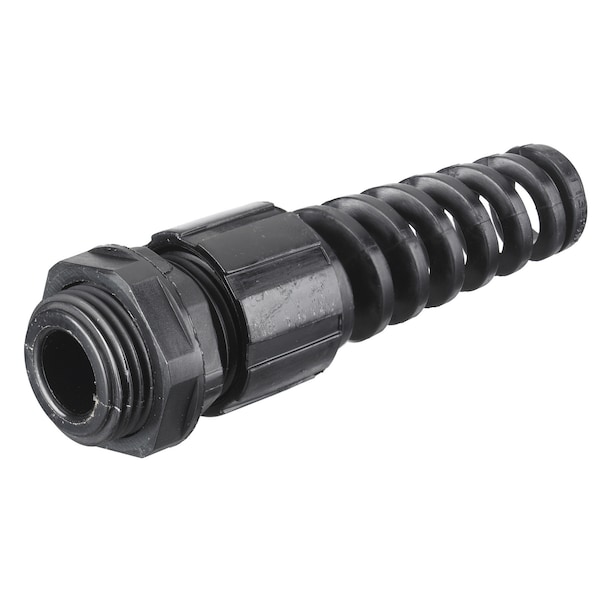

Cord Connectors, Straight Male, .45"- .71" (11.4-18), Nylon Miniature with Spiral
| Style - Connector | Straight Male |
|---|---|
| Type | Connector |
| Series | Miniature |
| Material | Nylon |
| Color | Black |
| Knockout Size | 0.82 to 0.84 in |
| Cable Opening Min. | 0.45 in |
| Item | Junior Cord Connectors |
| Application | Straight Male Connector with Spiral |
| Cable Opening Max. | 0.71 in |
| Standards | UL Listed, CSA Certified |
| Standard | UL Listed |
| Hub Size | 3/4 |
| Display Size | 3/4 NPT |
| Cord Dia. Range | 0.45 to 0.71 in |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Brand | Hubbell Wiring Device-Kellems |
| Number Of Conductors | Single |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Carton Quantity | 25 EA |
| Temp. Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Nema Rating | IP66 |
| Package Quantity | 25 |
