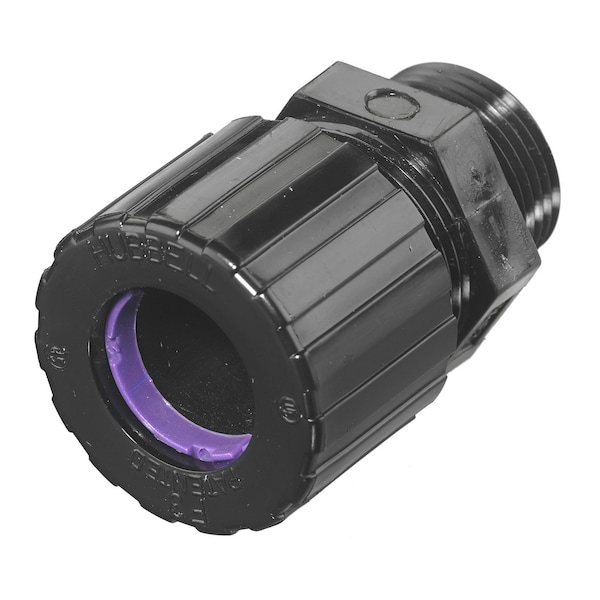

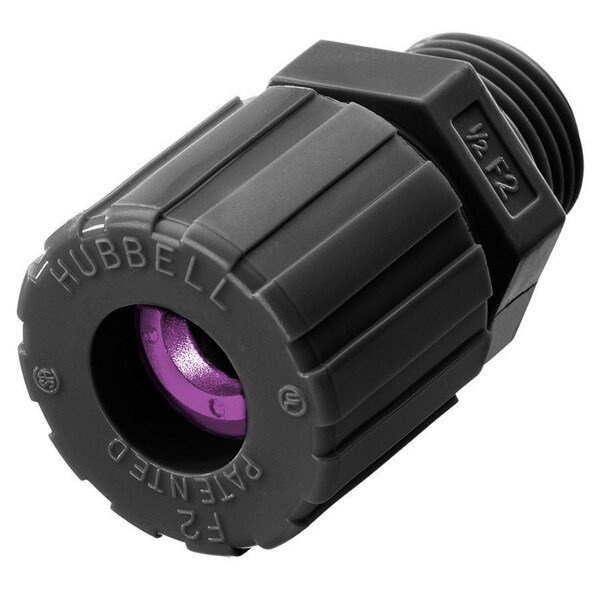

Cord Connectors, Straight Male, .750"- .875" (19.0- 22.2), Nylon Standard Style
| Style - Connector | Straight Male |
|---|---|
| Knockout Size | 1.09 to 1.14 in |
| Standards | UL 514B, CSA Certified |
| Type | Male |
| Color | Black |
| Cable Opening Min. | 3/4 in |
| Material | Nylon |
| Item | Cord Connectors |
| Cable Opening Max. | 7/8 in |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Series | Standard Duty |
| Cord Dia. Range | 3/4 to 0.88 in |
| Temp. Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Hub Size | 3/4 |
| Number Of Conductors | Single |
| Standard | UL Listed |
| Application | Straight Male- Form 3 |
| Display Size | 3/4 NPT |
| Carton Quantity | 25 |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Nema Rating | NEMA Type 4, 4X, 12 and 13 |
| Brand | Hubbell Wiring Device-Kellems |
| Color Code | Orchid |
| Package Quantity | 1 |
