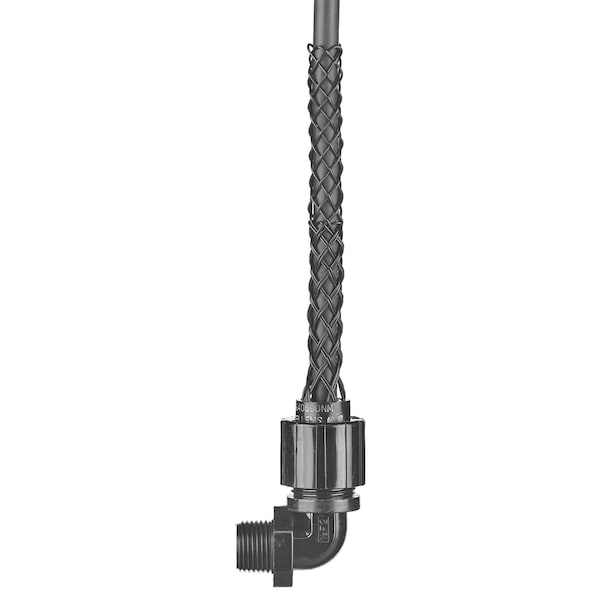

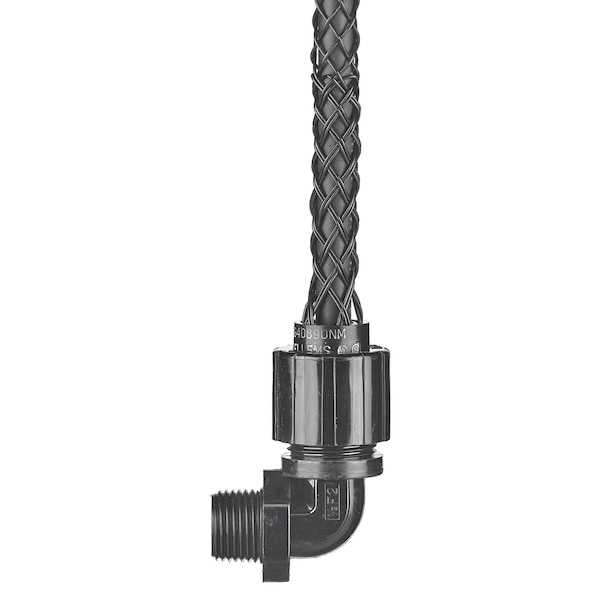

Deluxe Cord Grips
| Operating Temperature | -30°F to +225°F |
|---|---|
| Grip Thread Size | 1/2" |
| Dimension D | .58" Throat Dia. |
| Dimension E A/C | 1.23 in |
| Product Type | Grips |
| Dimension E A/F | 1.12 in |
| Dimension C | 0.55 in |
| Fitting Flammability Rating | UL 94-V2 |
| Deluxe Grip Form Size | F2 |
| Recommended Knockout Hole Size | .859 to .906 (2.18 - 2.30) |
| Dimension A | 1.41" |
| Thread Type | N.P.T. |
| Dimension B | 2.50" Ref. |
| Dimension G | 1.32" Dia. |
| Mesh Grip Flammability Rating | UL 94-HB |
| Flammability | UL94-HB(Mesh) UL94-V2(Fitting) |
| Certifications | UL Listed CSA Certified |
| Grip Style and Material | Nylon Connector Nylon Grip |
| Grip Cord Range (Diameter) | .250"- .375" (.63- .95) |
| Dimension F | 1/2" - 14 |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Package Quantity | 1 |
