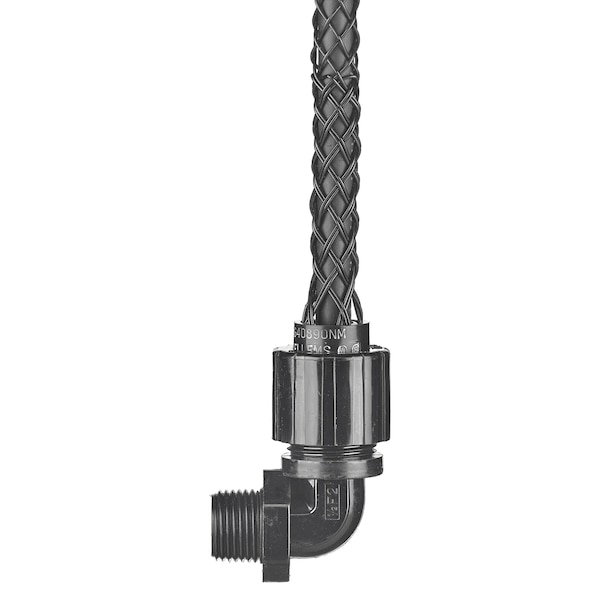

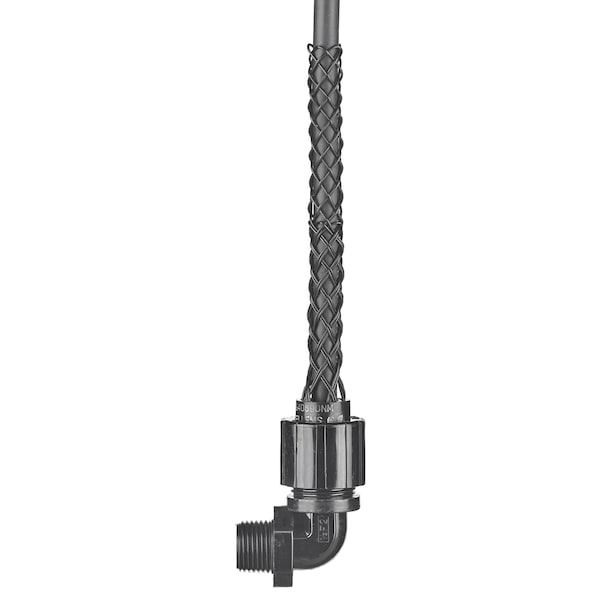

Deluxe Cord Grips
| Deluxe Grip Form Size | F3 |
|---|---|
| Dimension B | 2.81" Ref. |
| Flammability | UL94-HB(Mesh) UL94-V2(Fitting) |
| Dimension E A/C | 1.42 in |
| Dimension A | 1.65" |
| Grip Cord Range (Diameter) | .500"- .625" (1.27- 1.59) |
| Mesh Grip Flammability Rating | UL 94-HB |
| Product Type | Grips |
| Operating Temperature | -30°F to +225°F |
| Dimension G | 1.56" Dia. |
| Recommended Knockout Hole Size | 1.094 to 1.141 (2.78 - 2.90) |
| Thread Type | N.P.T. |
| Fitting Flammability Rating | UL 94-V2 |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Dimension C | 0.56 in |
| Certifications | UL Listed CSA Certified |
| Dimension F | 3/4" - 14 |
| Grip Thread Size | 3/4" |
| Dimension D | .77" Throat Dia. |
| Grip Style and Material | Nylon Connector Nylon Grip |
| Dimension E A/F | 1.29 in |
| Package Quantity | 1 |
