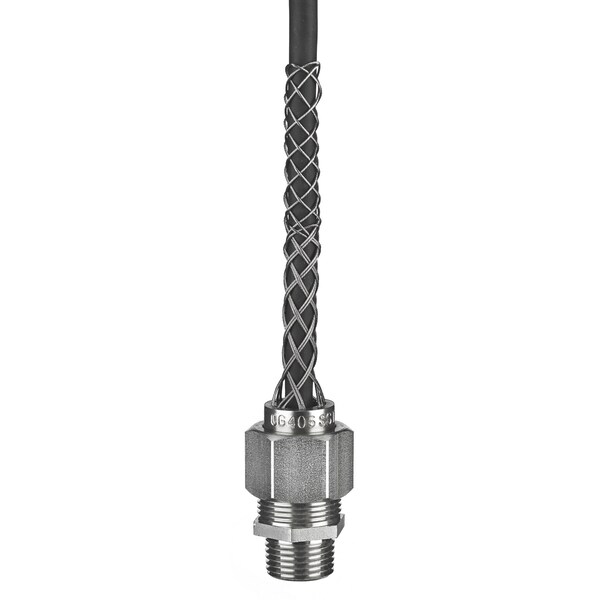

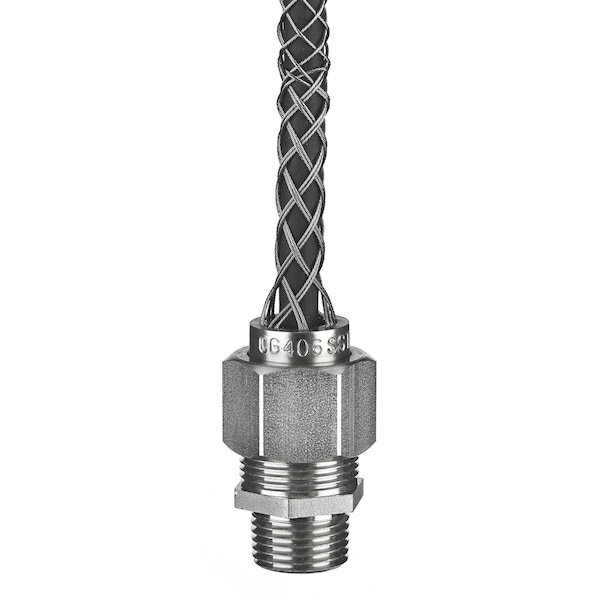

Deluxe Cord Grips
| Dimension E A/C | 1.44 in |
|---|---|
| Dimension F | 3/4" - 14 |
| Grip Cord Range (Diameter) | .750"- .875" (1.90- 2.22) |
| Grip Style and Material | Stainless Grip |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Grip Thread Size | 3/4" |
| Deluxe Grip Form Size | F3 |
| Fitting Flammability Rating | UL 94-V2 |
| Mesh Grip Flammability Rating | UL 94-HB |
| Product Type | Grips |
| Thread Type | N.P.T. |
| Recommended Knockout Hole Size | 1.094 to 1.141 (2.78 - 2.90) |
| Certifications | UL Listed CSA Certified |
| Dimension E A/F | 1-1/4 in |
| Dimension D | .81" Throat Dia. |
| Dimension B | 1.30" |
| Dimension C | 0.56 in |
| Dimension A A/C | 1.59 in |
| Operating Temperature | -30°F to +225°F |
| Dimension A A/F | 1.38 in |
| Package Quantity | 1 |
