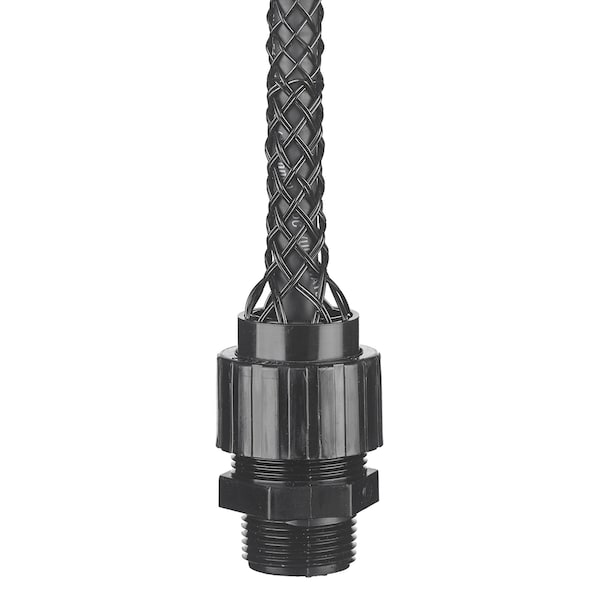

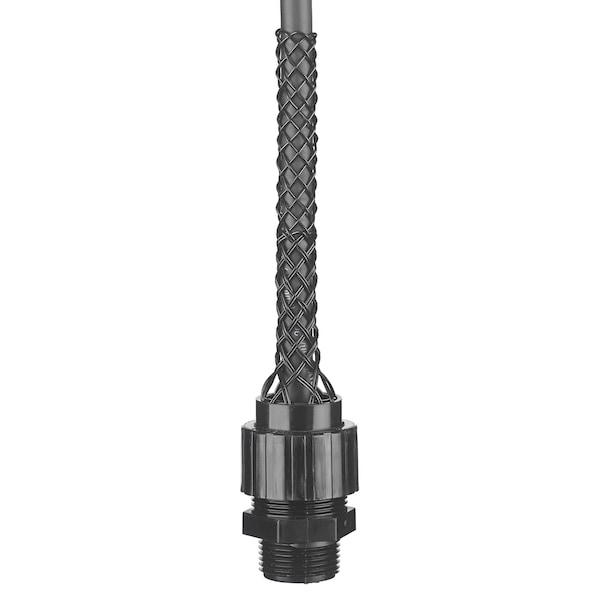

Deluxe Cord Grips
| Recommended Knockout Hole Size | 1.359 to 1.406 (3.45 - 3.57) |
|---|---|
| Fitting Flammability Rating | UL 94-V2 |
| Dimension E A/F | 1.63 in |
| Dimension D | 1.01" Throat Dia. |
| Certifications | UL Listed CSA Certified |
| Flammability | UL94-HB(Mesh) UL94-V2(Fitting) |
| Product Type | Grips |
| Dimension E A/C | 1.84 in |
| Dimension A | 1.88" Dia. |
| Dimension C | 0.7 in |
| Thread Type | N.P.T. |
| Mesh Grip Flammability Rating | UL 94-HB |
| Dimension F | 1" - 11 1/2 |
| Grip Style and Material | Nylon Connector Nylon Grip |
| Grip Thread Size | 1" |
| Grip Cord Range (Diameter) | .750"- .875" (1.90- 2.22) |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Dimension B | 1.75" Ref. |
| Deluxe Grip Form Size | F4 |
| Operating Temperature | -30°F to +225°F |
| Package Quantity | 1 |
