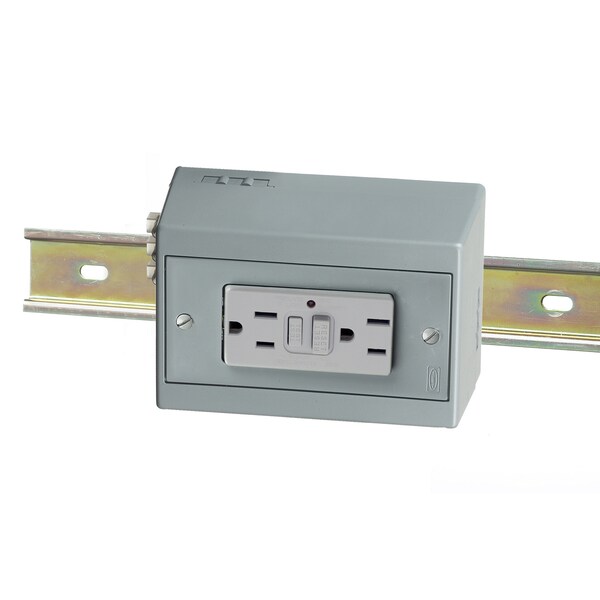

La caja de utilidad para riel DIN de Hubbell Wiring Device-Kellems es una unidad completa con protección contra fallas a tierra, horizontal, con capacidad para 1) 15A en color gris. Ideal para aplicaciones industriales y comerciales.
| Current Rating | 15 A |
|---|---|
| Height | 2.54 in |
| Type | Box, Device |
| Color | Gray |
| NEMA Configuration | 5-15R |
| Width | 3.31 in |
| Length | 5.62 in |
| Application | Unit Pre-Wired with GFCI Duplex |
| Device Rating | 125V, 15A |
| DRUB Mounting | Horizontal |
| Device Color | Gray |
| DIN Rail Utility Box Variety | Complete Unit w/GFCI |
| Product Type | Drub |
| Certifications | UL Listed, CSA Certified |
| Industry Standard(s) | UL Listed |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Construction | Molded and Fabricated |
| Nema Rating | 5-15R |
| Cable Entry | Terminals |
| Amperage Rating | 15 A |
| Dimensions | 5.62 in x 3.31 in x 2.54 in |
| Knockouts | None |
| Wire Size | #14 AWG to #12 AWG |
| Item Type | Complete Unit |
| Material - Mounting Hardware | DIN Rail Mount, Horizontal Mount |
| Voltage Rating Description | 125 V |
| Number Of Poles | 2-Pole |
| Display Size | Standard Sized Product |
| Horsepower - Maximum | 0.5 |
| Dielectric Strength | Withstands 2,000V minimum |
| Current / Amperage Rating | 15 A |
| Number Of Wires | 3-Wire |
| Package Quantity | 1 |
