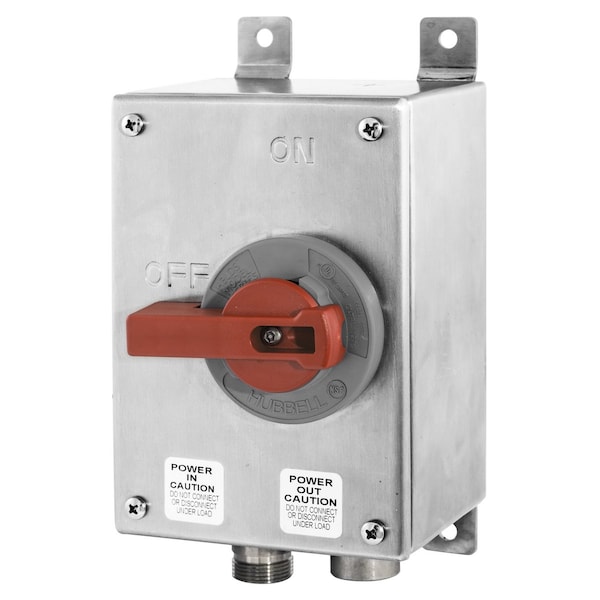

Interruptores de desconexión, caja cuadrada, 30A 600V AC, sin fusibles, NEMA 4X, acero inoxidable, con 2 receptáculos LINKOSITY pre-cableados.
| Phase | Three Phase |
|---|---|
| Width | 6 in |
| Height | 4.12 in |
| Length | 8-1/2 in |
| Enclosure Type | Type 4X |
| Wire size | #14 AWG to #10 AWG |
| Series | MotorQuick/LINKOSITY |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Ingress Protection | IP67 |
| Horsepower - Maximum | 15 |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Type | Disconnect Switches |
| Connectivity | Pre-Wired |
| Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dimensions | 8-1/2 in x 6 in x 4.12 in |
| Performance | Electrical - Dielectric Voltage - 2,200V AC minimum for 1 minute Electrical - Electrical Life - 6,000 cycles with load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V0 Classification Environmental - Operating Temperature - Max. continuous 75°C, Min. continuous -40°C Mechanical - Impact Resistance - UL746C Mechanical - Mechanical Life - 10,000 minimum cycles Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max Mechanical - Terminal Torque - 30A, 20 inch pounds |
| Industry Standard(s) | Listed to UL 2238 and UL 50E UL 508, Industrial Control Equipment File #E36355 |
| Package Quantity | 1 |
