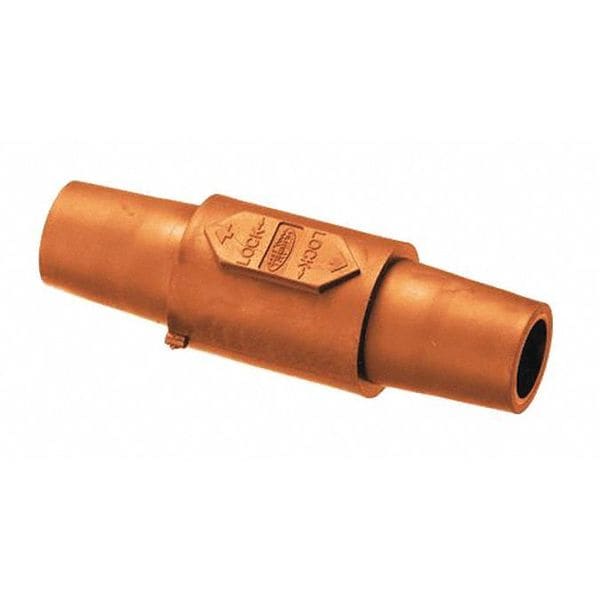

Conector doble de 300/400A color naranja, con terminales hembra-hembra para conexiones seguras y confiables.
| Item | Double Connector |
|---|---|
| Type | Gender Reversing |
| Series | 16 |
| Terminal Connection | N/A |
| Male/Female | Female-Female Male |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Single Pole Device Style | Taper Nose |
| Color | Orange |
| Fits | UL1691 |
| Conductor Material | Brass |
| Amps AC/DC | 300/400AC/DC |
| Material | Thermoplastic Elastomer |
| Standards | cUL, UL |
| Cable Range | N/A |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Material | Thermoplastic Elastomer |
| Gender Configuration | Female-Female |
| Contact Material | Brass |
| Compatible with Series | 16 |
| Overall Height | 4.84 in |
| Maximum Operating Temperature | 75 Degrees C |
| Overall Width | 1.56 in |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Housing Color | Orange |
| Application | High Ampacity |
| Amperage Rating | 400 A |
| Current / Amperage Rating | 400 A |
| Wattage | 360,000 |
| Industry Standard(s) | UL 498 And UL1691 |
| Voltage Rating Description | 600V AC/DC |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device |
| Style | Double Female |
| Number Of Pins | 1) In, 1) Out |
| Item Type | Gender Reverser |
| Insulation | Insulated Body |
| Operating Temperature | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Package Quantity | 1 |
