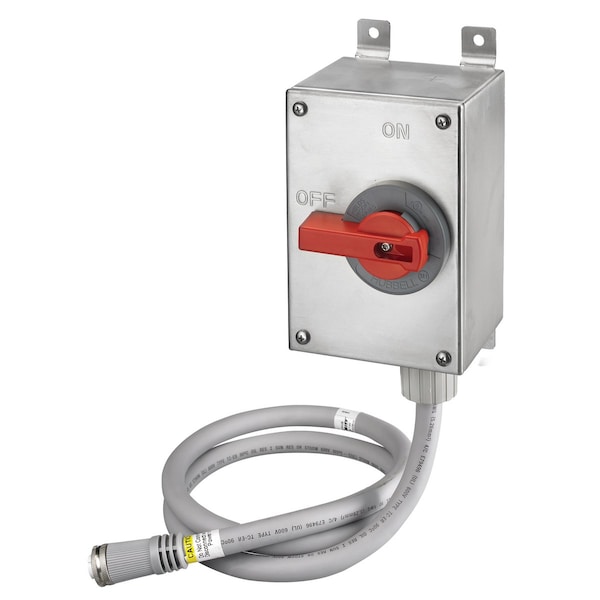

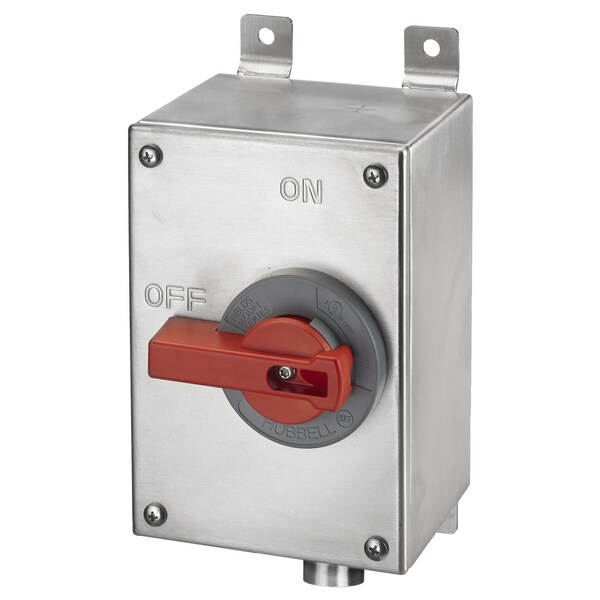

Interruptores de desconexión cerrados HBLDS3SSMQR.
| Phase | Three Phase |
|---|---|
| Width | 6 in |
| Height | 4.12 in |
| Length | 8-1/2 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | MotorQuick/LINKOSITY |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Amperage Rating | 30 A |
| Wire size | #14 AWG to #10 AWG |
| Ingress Protection | IP67 |
| Enclosure Type | Type 4X |
| Current Rating | 30 A |
| Connectivity | Pre-Wired |
| Horsepower - Maximum | 15 |
| Type | Disconnect Switches |
| Package Quantity | 1 |
