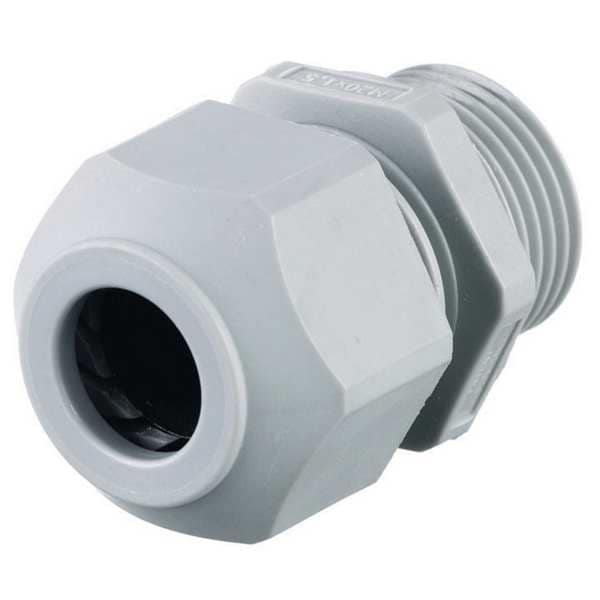

European Cord Connector Pg36 H
| Item | Low Profile Cord Connectors |
|---|---|
| Hub Size | PG36 |
| Material | Non-Metallic |
| Color | Gray |
| Standards | UL Listed |
| Box Connection | PG36, Male |
| Cord Dia. Range | 0.88 to 1.3 in |
| Minimum Operating Temperature | -22 deg F |
| Body Color | Gray |
| For Maximum Cable OD | 1.3 in |
| For Minimum Cable OD | 0.88 in |
| Maximum Operating Temperature | 225 deg F |
| Body Material | Nylon |
| IP Rating | IP66 |
| Thread Size | PG36 |
| Gripper Material | Nylon |
| Thread Type | PG |
| Grommet Color Code | No Code |
| Dimension A | 1.811" |
| Protection Class | IP68 |
| Sealing Grommet Material | Neoprene |
| Operating temperature | -30°C to 100°C |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | 0.88 to 1.3 in |
| Dimension E | 2.283 in |
| Dimension B | 1.181" |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| UPC | 783585000000 |
| Temp. Rating | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) |
| Application | Straight Male Connector |
| Temperature Rating | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) |
| Material/Style | Nylon Low Profile |
| Item Type | Low Profile Cord Connectors |
| Standard | UL Listed |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Carton Quantity | 50 |
| Cord Diameter Range | 0.88 to 1.3 in |
| Number Of Conductors | Single |
| Dimension C | .512 (13) |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Product Type | Cord Connectors |
| Series | Low Profile PG |
| Dimension G | 1.85 in |
| Display Size | PG36 |
| Industry Standard(s) | UL Listed |
| Nema Rating | IP66 |
| Brand | Hubbell Wiring Device-Kellems |
| Dimension D | 1.85" |
| Certifications | UL 514B, CSA C22.2 No. 18 |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Type | Connector |
| Cord Connector Body Style | Straight Male |
| Dimension F | 2.087 in |
| Flammability | UL 94 V-0 |
| Package Quantity | 1 |
