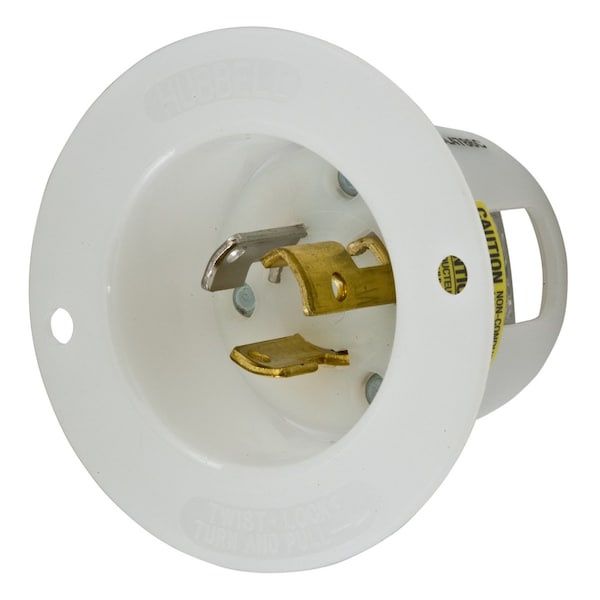

La entrada con pestillo con brida L7-15P de Hubbell Wiring Device-Kellems es un componente duradero y confiable para aplicaciones monofásicas de 277V CA. Con una capacidad de corriente de 15 A y terminales de tornillo, esta entrada ofrece una conexión segura y firme.
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Receptacle Configuration | L7-15P |
| Current Rating | 15 A |
| Voltage Rating | 277V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Housing Color | White |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42 Fed.Spec.W-C-596 Listed to UL 498 |
| Wiring Style | Standard |
| Material | zinc plated |
| Flange Material | Natural White Nylon |
| Special Features | Molded In or Stamped On |
| Application | Extra Heavy Duty Industrial |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Lock Type | Twist-lock |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Horsepower - Maximum | 2 |
| Dimensions | 2.56 in x 2.56 in x 1.71 in |
| Insulation | Insulated Body |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec.W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Width | 2.56 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Length | 2.56 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Height | 1.71 in |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
