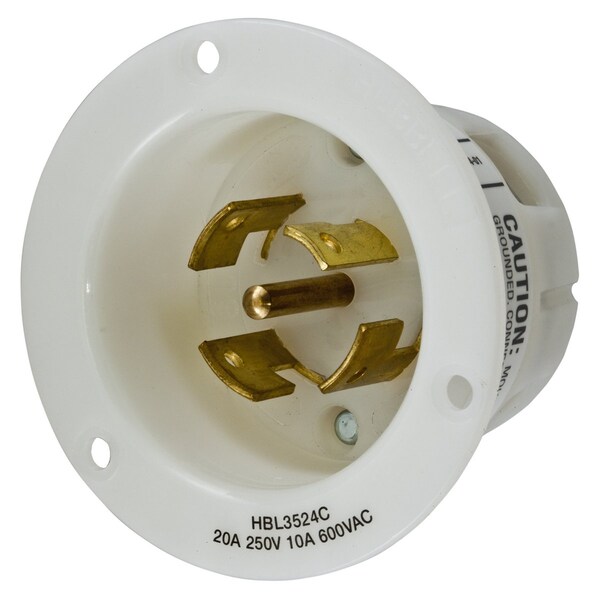

Esta entrada con pestillo empotrable de Hubbell Wiring Device-Kellems es ideal para aplicaciones trifásicas de alto voltaje. Con una corriente de 20/10 A y 250/600V AC, este dispositivo de 4 polos ofrece un montaje enrasado para un ajuste seguro y confiable.
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 2 A |
| Voltage Rating | 250/600V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | White |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498 |
| Flange Type | Flanged |
| Material | Nickel-plated Brass Round head screws |
| Special Features | Molded In or Stamped On |
| Wiring Style | Standard |
| Flange Material | Natural White Nylon |
| Application | Extra Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wir only. |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Insulation | Insulated Body |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.06 in x 3.06 in x 2.23 in |
| Width | 3.06 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3.06 in |
| Height | 2.23 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wir only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 20/10 A |
| Package Quantity | 1 |
