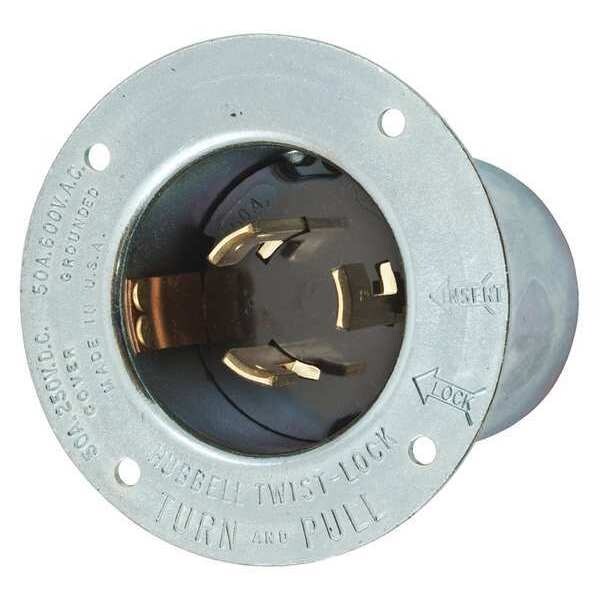

Este ingreso con bloqueo con brida de 50 A y 250/600V AC es ideal para instalaciones trifásicas. Cuenta con montaje a ras de pared y 3 polos para una conexión segura y confiable.
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 50 A |
| Voltage Rating | 250/600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Silver |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | IP20 |
| NEMA Enclosure Rating | 1 |
| Standards | CSA C22.2 No. 42, UL 498 |
| Resistance Properties | Moisture Resistant, Heat Resistant |
| Flange Type | Flanged |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Steel |
| Mounting Type | Flush Mount |
| Grade | General Use |
| Special Features | Molded In or Stamped On |
| Flange Diameter | 3-1/2 in |
| Flange Material | Steel |
| Minimum Wire Size | 8 AWG |
| NEMA Plug Configuration | Non-NEMA |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 4 AWG |
| Blade Material | Brass |
| Overall Depth | 2.62 in |
| For Environment | Dry |
| Housing Material Finish | Zinc Plated |
| Market | Industrial |
| UL 94 Flammability Rating | V-0 |
| Face Diameter | 2.17 in |
| Housing Material | Steel |
| For Location | Indoor |
| Minimum Operating Temperature | -40 deg C |
| Number of Blades | 4 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Twist-lock |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Wire Size | #6AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Width | 3-1/2 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 2.14 in x 3-1/2 in x 2.62 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Length | 2.14 in |
| Amperage Rating | 50 A |
| Application | Extra Heavy Duty Industrial |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Screw Mounting |
| Height | 2.62 in |
| Color | Silver |
| NEMA Configuration | Non-NEMA |
| Amps | 50 |
| Voltage | 600V AC/250V DC |
| NEMA Rating | 1 |
| Package Quantity | 1 |
