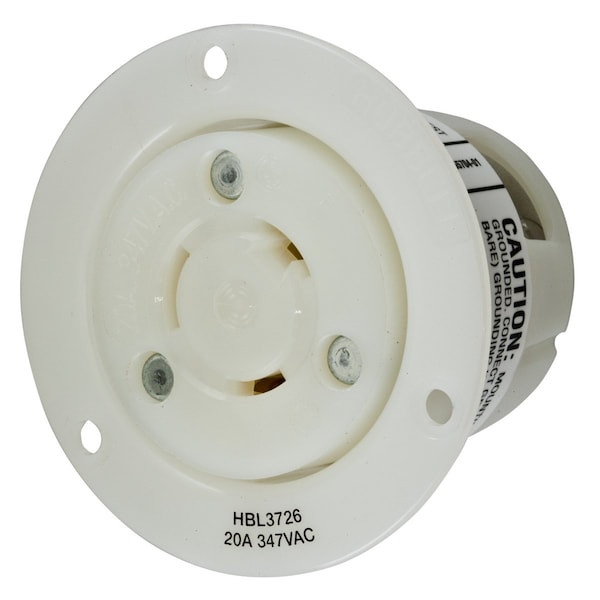

Este receptáculo de bloqueo con brida está diseñado para ofrecer una conexión segura y confiable. Con capacidad para 20 A y 347V CA, es ideal para aplicaciones monofásicas. Cuenta con 2 polos y terminales de tornillo para una fácil instalación.
| Item | Flanged Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L24-20R |
| Current Rating | 20 A |
| Voltage Rating | 347V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Housing Color | White |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Wiring Style | Standard |
| Material | Nylon |
| Application | Insulgrip |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Lock Type | Twist-lock |
| Height | 2.09 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Amperage Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Width | 2.88 in |
| Length | 2.88 in |
| Display Size | Standard Sized Product |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
