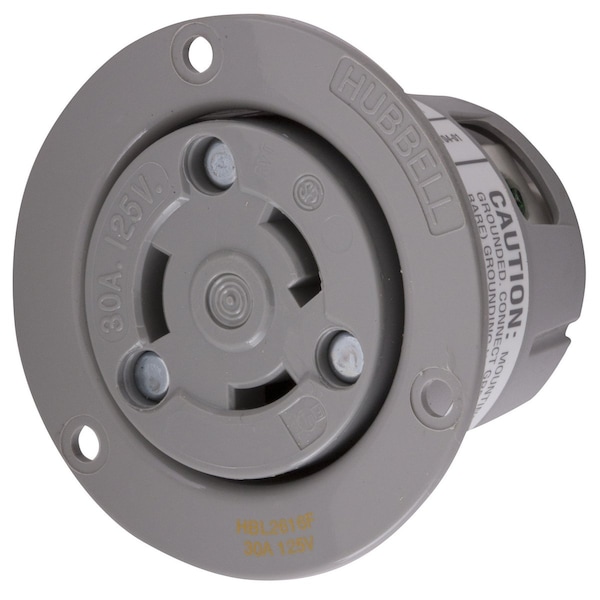

Este receptáculo con bloqueo y brida es ideal para aplicaciones de 125V CA y 30 A. Diseñado para montaje al ras y con un sistema de bloqueo seguro, es perfecto para entornos industriales y comerciales.
| Item | Flanged Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L5-30R |
| Current Rating | 30 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Gray |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | IP20 |
| NEMA Enclosure Rating | 1 |
| Standards | Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, UL 498 |
| Resistance Properties | Moisture Resistant |
| Flange Type | Flanged |
| Wiring Style | High Temp |
| Flange Material | Gray nylon |
| Material | Nickel-plated Brass Round head screws |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #10 AWG |
| Operating Temp. | Maximum Continuous 75A Deg C Minimum -40A Deg C (w/o impact) |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Spring Material | Brass |
| Lock Type | Twist-lock |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 30 A |
| Length | 2.98 in |
| Horsepower - Maximum | 2 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Width | 2.98 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Height | 2.22 in |
| Dimensions | 2.98 in x 2.98 in x 2.22 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
