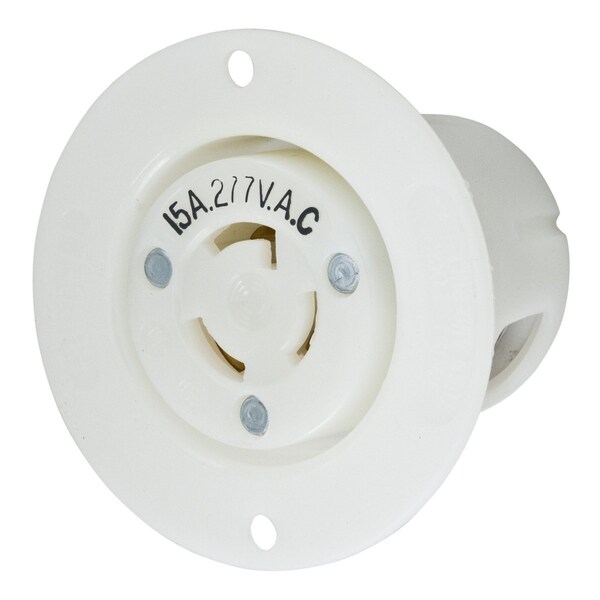

Este receptáculo con pestillo y brida de 15 A y 277V CA es ideal para aplicaciones monofásicas. Cuenta con 2 polos y terminales de tornillo para una instalación segura y confiable.
| Item | Flanged Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L7-15R |
| Current Rating | 15 A |
| Voltage Rating | 277V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | White |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42, Fed. Spec. W-C-596, UL 498 |
| Wiring Style | Standard |
| Special Features | Molded In or Stamped On |
| Material | Nickel-plated Brass Round head screws |
| Flange Material | Stainless Steel |
| Application | Insulgrip |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | Brass |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Lock Type | Twist-lock |
| Amperage Rating | 15 A |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 2.56 in x 2.56 in x 1.71 in |
| Height | 1.71 in |
| Width | 2.56 in |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| Length | 2.56 in |
| Package Quantity | 1 |
