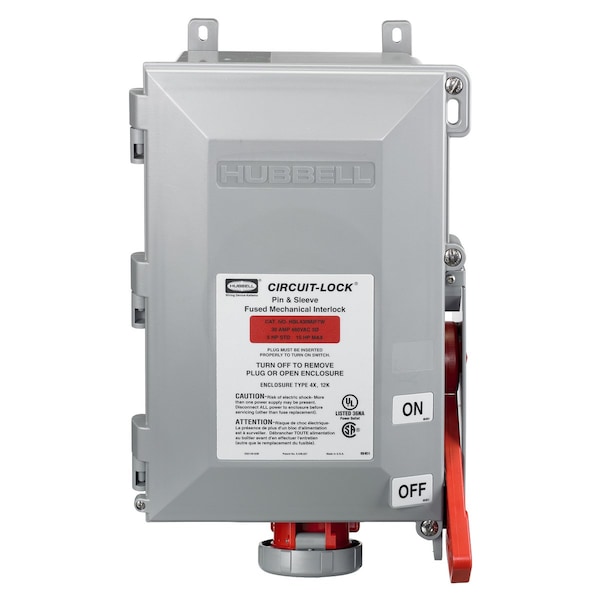

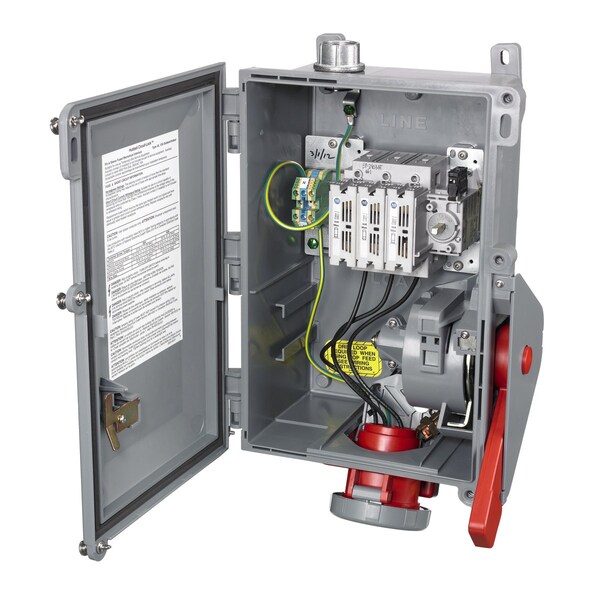

Fused Circuit-Lock Interlock Device, 4P5W, 30A 3PH 277/480V
| Type | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Valox |
| Voltage | 277/480V |
| Amps - Plugs and Receptacles | 30 A |
| Color - Plugs and Receptacles | Red |
| Phase | 3Y |
| Number of Poles | 4 |
| Number of Wires | 5 |
| NEMA Rating | 4X, 12 |
| Use With | Mating Plug HBL530P7W |
| HP | 15 |
| Standards | UL Listed, CSA Certified, UL746C |
| Features | IEC Mechanical Interlock, UV Stabilized |
| Operating Temp. Range | -40 to 75° C |
| IP Rating | IP67 |
| Wire Size | 4 to 12 AWG |
| Package Quantity | 1 |
