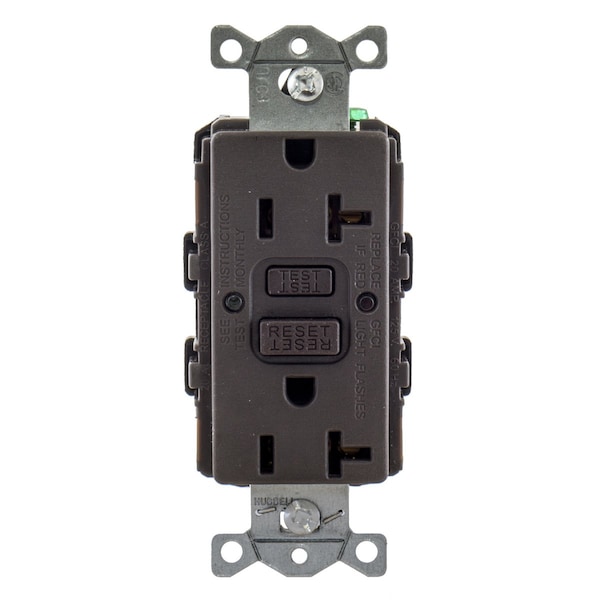

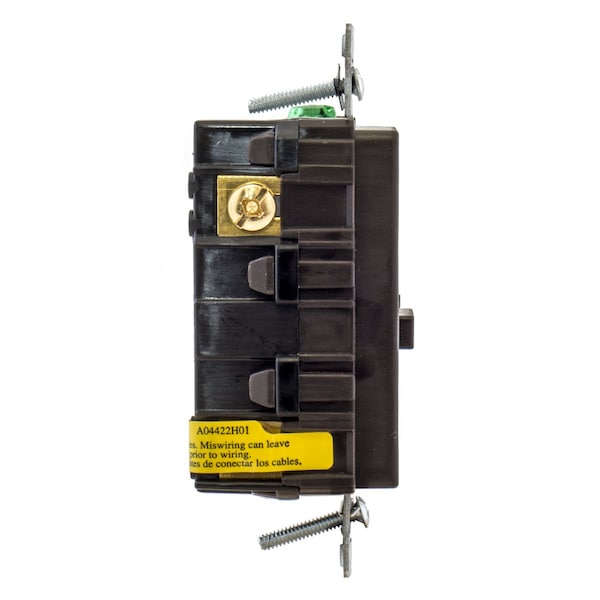

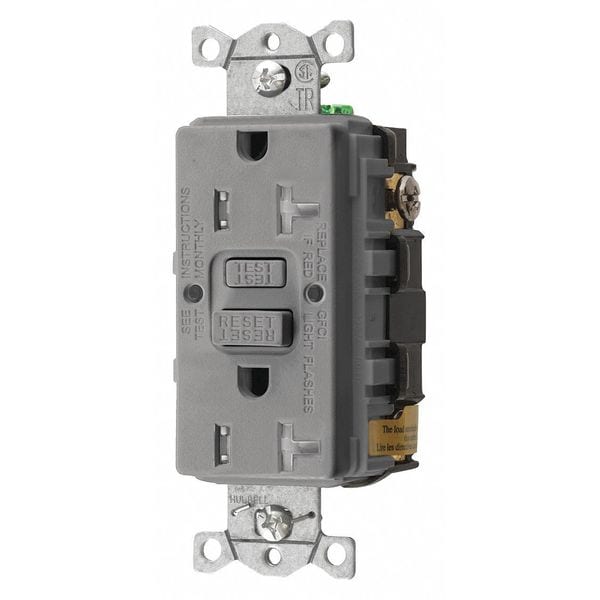

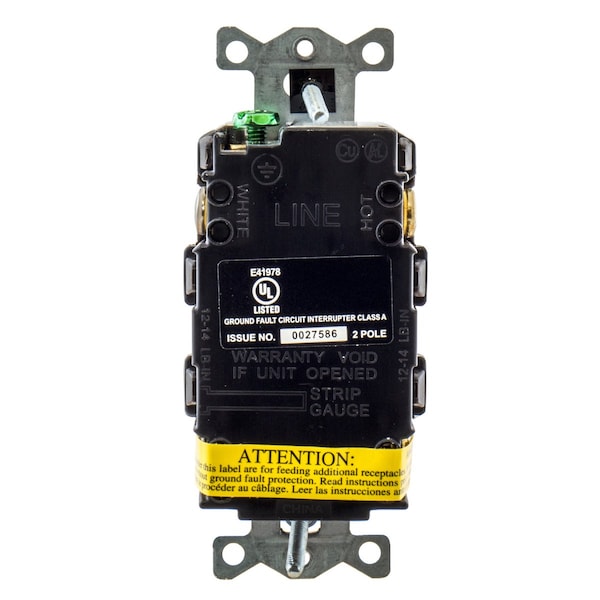

Este receptáculo GFCI de grado comercial es ideal para aplicaciones industriales, con una capacidad de 20 amperios y 1 caballo de fuerza. Su diseño resistente y seguro lo hace perfecto para entornos de trabajo exigentes.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20 A |
| GFCI | Yes |
| Phase | Single |
| Grounding | Grounded |
| Housing Color | Gray |
| Housing Material | Nylon |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | NEC |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps | 20 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Power Indicator | Yes |
| Reset Type | Automatic |
| HP | 1 hp |
| Voltage - Plugs and Receptacles | 125 V |
| Mounting Type - Plugs and Receptacles | Flush |
| Weather Resistant | No |
| Self-Testing | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Gray |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Amps - Plugs and Receptacles | 20 A |
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type | Decorator |
| Application Environment | Commercial |
| Voltage | 125VAC |
| Tamper Resistant | Yes |
| Color | Gray |
| Special Features | Ground Fault Indicator |
| NEMA Configuration | 5-20 |
| Surge Suppression | No |
| Wiring Method | Back, Side |
| Amps - Plugs and Receptacles | 20 |
| AFCI | No |
| Contact Material | Brass |
| Features | Tamper Resistant |
| Resistance Properties | Tamper Resistant |
| Includes Mounting Hardware | Yes |
| Mount Type | Flush |
| Shrouded | No |
| Face Plate Width | 1.8 in |
| Wire Connection Type | Screw Terminals |
| Number of Gangs | 1 |
| Receptacle Type | Duplex |
| Self Testing | Yes |
| Flange Type | Non-Flanged |
| Voltage Rating | 125 V AC |
| Horsepower Rating | 1 HP |
| Includes | Mounting Hardware |
| Surge Protection | No |
| Face Plate Height | 2.8 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Market | Commercial |
| Grade | General Use |
| Base | Nylon |
| Mounting Strap | Zinc plated steel |
| Face | Nylon |
| Mounting Screws | Zinc plated steel |
| Power Contacts | Brass |
| Description | 20A, 125V, Style Line®, assembled in the USA, AUTOGUARD® self test GFCI receptacle, flush face, back and side wired, multiple drive screws |
| Ground Contacts | Brass |
| Package Quantity | 1 |
