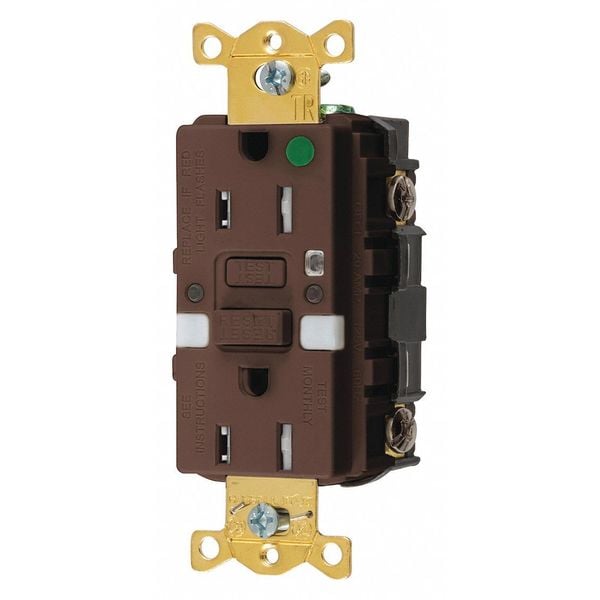

Este receptáculo GFCI está diseñado especialmente para su uso en entornos hospitalarios. Con capacidad para 15 amperios y 0.5 HP, cumple con las normativas de seguridad más estrictas.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Phase | Single |
| GFCI | Yes |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Nylon |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | NEC |
| Application Environment | Heavy Use Hospital Grade |
| Weather Resistant - Plugs and Receptacles | No |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps - Plugs and Receptacles | 15 A |
| HP | 0.5 hp |
| Color - Plugs and Receptacles | Brown |
| Voltage - Plugs and Receptacles | 125 V |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Power Indicator | Yes |
| Wiring Method | Back, Side |
| Reset Type | Automatic |
| Amps | 15 |
| Item - Plugs and Receptacles | Receptacle |
| Amps - Plugs and Receptacles | 15 |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Weather Resistant | No |
| NEMA Configuration | 5-15 |
| Outlet Type | Decorator |
| Voltage | 125VAC |
| Tamper Resistant | Yes |
| Color | Brown |
| Special Features | Nightlight |
| Surge Suppression | No |
| Mounting Type - Plugs and Receptacles | Flush |
| Self-Testing | Yes |
| Horsepower Rating | 0.5 HP |
| Market | Commercial |
| Wire Connection Type | Screw Terminals |
| Face Plate Width | 1.8 in |
| Voltage Rating | 125 V AC |
| Shrouded | No |
| Grade | Hospital Grade |
| Self Testing | Yes |
| Contact Material | Brass |
| Features | Night Light |
| Resistance Properties | Tamper Resistant |
| Includes Mounting Hardware | Yes |
| Flange Type | Non-Flanged |
| Mount Hole Center-to-Center Height | 3.3 in |
| Surge Protection | No |
| Mount Type | Flush |
| Number of Gangs | 1 |
| Face Plate Height | 2.8 in |
| Includes | Mounting Hardware |
| AFCI | No |
| Receptacle Type | Duplex |
| Type | Tamper-Resistant |
| Style | Nightlight |
| Current / Amperage Rating | 15 A |
| Series | Hospital Grade |
| Nema Rating | 5-15R |
| Voltage Rating Description | 125 V |
| Industry Standard(s) | Meets All NEC® Requirements |
| Package Quantity | 1 |
