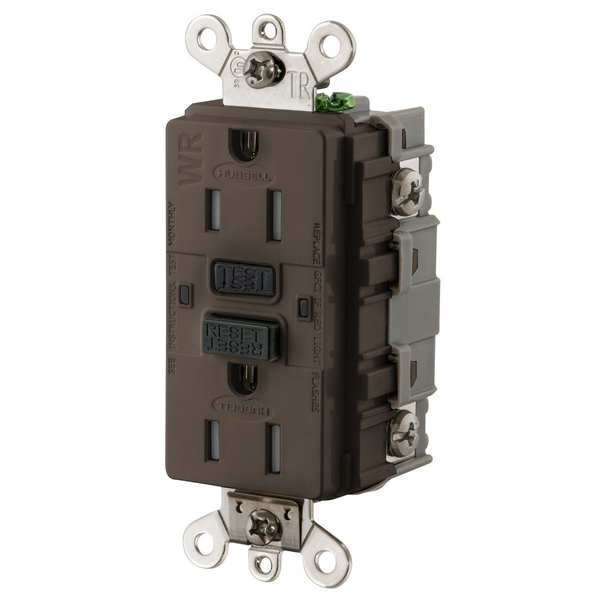

Este receptáculo GFCI de 15A y 125VAC en color marrón es ideal para proteger a las personas de descargas eléctricas en áreas húmedas o al aire libre. Cumple con las normas de seguridad y cuenta con un diseño resistente y duradero.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Phase | Single |
| GFCI | Yes |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Nylon |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed |
| Outlet Type | Decorator |
| Voltage - Plugs and Receptacles | 125 V |
| Mounting Type - Plugs and Receptacles | Flush |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Tamper Resistant | Yes |
| NEMA Configuration | 5-15 |
| Color | Brown |
| Color - Plugs and Receptacles | Brown |
| Weather Resistant | Yes |
| Surge Suppression | No |
| Amps - Plugs and Receptacles | 15 |
| Power Indicator | Yes |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Reset Type | Automatic |
| Application Environment | Industrial |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Self-Testing | Yes |
| Weather Resistant - Plugs and Receptacles | Yes |
| Voltage | 125VAC |
| Item - Plugs and Receptacles | Receptacle |
| Amps | 15 |
| HP | 0.5 hp |
| Amps - Plugs and Receptacles | 15 A |
| Wiring Method | Back, Side |
| Special Features | Includes (1) Brown Nylon Wall Plate and (1) Stainless Steel Wall Plate |
| Wall Plate Material | Stainless Steel |
| Contact Material | Nickel-Plated Brass |
| Features | Self Test |
| AFCI | No |
| Face Plate Height | 2.8 in |
| Maximum Wire Size | 10 AWG |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Self Testing | Yes |
| Horsepower Rating | 0.5 HP |
| Number of Wall Plates Included | 1 |
| Shrouded | No |
| Mount Hole Center-to-Center Height | 3.3 in |
| Mount Type | Flush |
| Surge Protection | No |
| Minimum Wire Size | 14 AWG |
| Number of Gangs | 1 |
| Includes Mounting Hardware | Yes |
| Minimum Operating Temperature | -31 deg F |
| Face Plate Width | 1.8 in |
| Grade | Federal Specification |
| Flange Type | Non-Flanged |
| Maximum Operating Temperature | 150.8 deg F |
| Receptacle Type | Duplex |
| Resistance Properties | Tamper Resistant, Weather Resistant |
| Hub Type | Feed Through |
| Voltage Rating | 125 V AC |
| UL 94 Flammability Rating | V-0 |
| Includes | (1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware |
| Receptacle Grade | Industrial Grade |
| Amperage | 15 A |
| Trip Level | 4-6 mA |
| GFCI Product Type | receptacles |
| Receptacle Version | Self Test Tamper Resistant |
| Codes and Standards | Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886 |
| Voltage Range | 120V AC +10% -15% |
| Trip Time | 0.025 seconds |
| Terminal Accommodations | #14 -10 AWG stranded or solid copper conductors only. |
| Operating Temp | Deg F -30 to 150 (Deg C -30 to 66) |
| Max Interrupting Capacity | 10,000 Amps |
| Frequency | 60Hz |
| Max Humidity | 0.95 |
| Amperage Range | 15A/20A, 20 Amps Feed Thru |
| Package Quantity | 1 |
